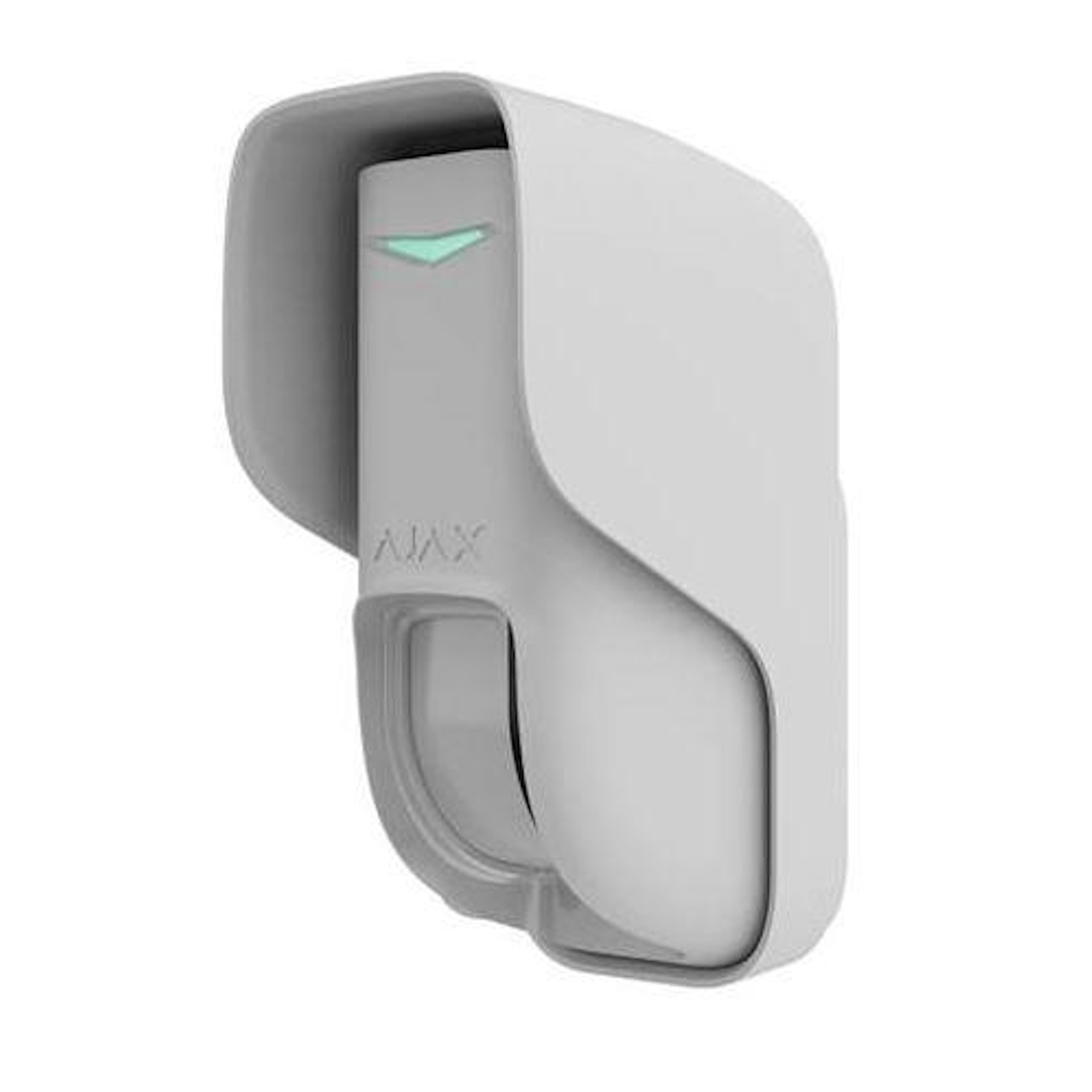

Ajax Curtain Outdoor Jeweller wireless outdoor motion curtain detector dual PIR + microwave detection 8–12 m 868 MHz Jeweller perimeter protection antimasking battery powered ~3 years hub range up to 1700 m white

Ajax Curtain Outdoor Jeweller is a wireless outdoor curtain motion detector designed for perimeter protection, for example along fences, windows, doors or gates. It uses dual PIR and microwave sensing technology to accurately detect human movement within a long, narrow zone up to 8–12 m, and Jeweller two-way RF wireless communication with up to 1700 m radio range for stable alarm transmission.

Key Advantages

• Dual PIR + K-band microwave technology → accurate motion detection with a very low number of false alarms

• Narrow “curtain” detection zone → effective perimeter protection along walls, doors and fences

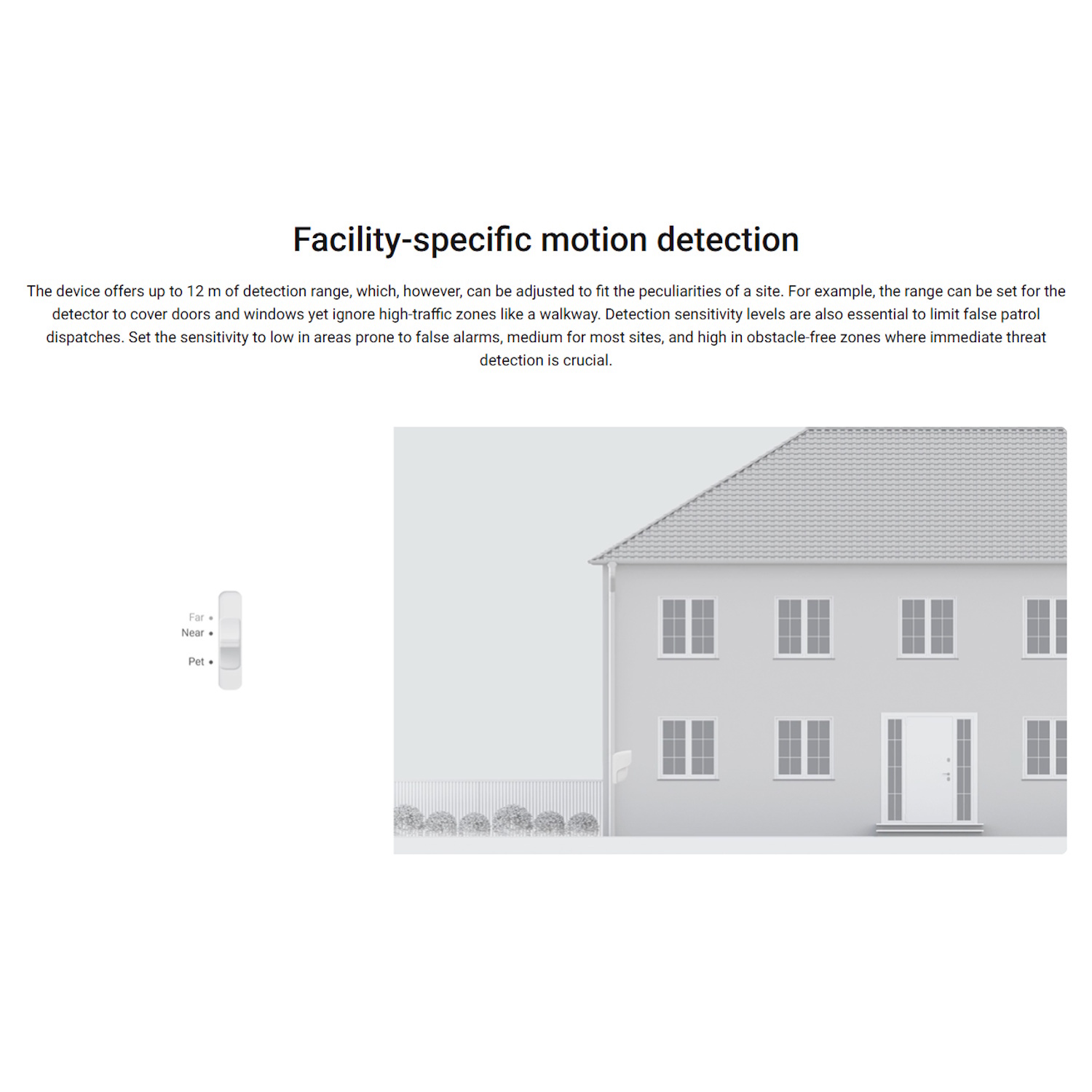

• Adjustable detection range (8–12 m) → configurable to the property layout

• Jeweller two-way RF wireless protocol → secure and fast data transmission to the hub up to 1700 m

• Anti-masking system → detects attempts to block or mask the sensors

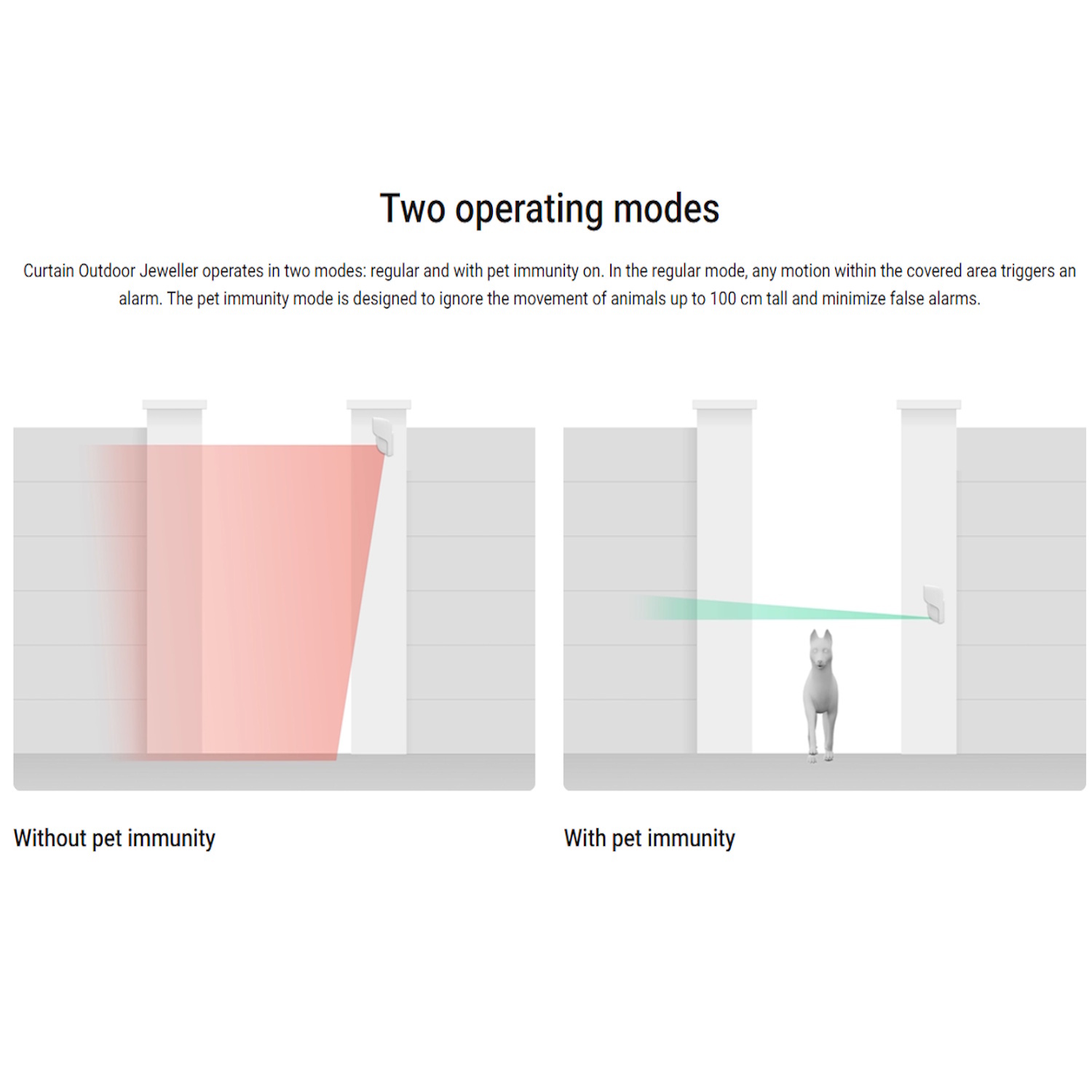

• Pet immunity → can ignore small pet movement, reducing false alarms

• Up to 3 years battery autonomy → long operation without frequent battery replacement

• Wide operating temperature range → reliable operation from −25 °C to +60 °C

Technical Specifications

• Type → outdoor wireless curtain motion detector

• Model → Curtain Outdoor Jeweller (Ajax)

• Sensing technology → 2 × PIR + 1 × K-band microwave sensor (24 GHz)

• Wireless protocol → Jeweller

• Radio frequency → 868 MHz (region-dependent)

• Radio range → up to ~1700 m in open space

• Detection distance → 8–12 m (depending on installation height)

• Detection angle → horizontal ~8°, vertical ~85° (higher installation height)

• Sensor sensitivity → 3 levels (configurable in the Ajax app)

• Pet immunity → ignores movement up to ~1 m height (with correct settings)

• Power supply → 2 × CR123A 3 V batteries (pre-installed)

• Battery life → up to approximately 3 years

• Protection rating → suitable for outdoor installation (protected against weather exposure)

• Operating temperature → −25 °C to +60 °C

• Dimensions → approximately 141 × 50 × 72 mm (without cover)

• Color → white

Compatibility

• Ajax Hub, Hub 2, Hub 2 Plus and Hub Hybrid — connects via the Jeweller protocol

• ReX 2 radio repeater — can extend the communication range to the hub

• Not intended for incompatible wireless systems without Jeweller protocol support

How to Use

• Install the detector in the perimeter zone, aligning the sensor parallel to the monitored strip

• Add it to the Ajax hub via the Ajax app

• Use the SmartBracket mount or an additional angle bracket to achieve the required position

• Set the sensitivity level and pet immunity mode in the Ajax app

• Check radio signal strength and the detection zone before arming the system

Why Choose This Product
Ajax Curtain Outdoor Jeweller combines a precise narrow detection zone with two reliable technologies that filter false alarms and maintain secure communication with the hub across a wide radio range. Up to 3 years of battery autonomy and a wide operating temperature range make it a stable and reliable perimeter protection solution that integrates well with the Ajax system and adapts to site-specific needs.

Real-World Usage Scenarios

• Fence and property perimeter protection with a narrow detection zone

• Outdoor protection of windows and doors against unauthorized access

• Protection along gates or passages where traditional PIR detectors may be less precise

• Monitoring an apartment terrace or veranda area against intrusion

• Integration with the Ajax security system — automatic alarms and app notifications

Package Contents

• Ajax Curtain Outdoor Jeweller wireless motion detector

• SmartBracket mount and angle bracket

• Cover and mounting accessories

• Pre-installed batteries (CR123A)

About the Brand
Ajax Systems is an international wireless security systems manufacturer using the Jeweller protocol, stable wireless connectivity and intuitive mobile app management to deliver high-quality perimeter and indoor protection for residential properties and businesses.
