| Material | Plastic |
| Number in package | 1 |
| Application temperature, ° C | 18 — 49 |
| Diameter, mm | 204 |
| Capacity of gravity kg | 58 |
| Working part material | rubber |

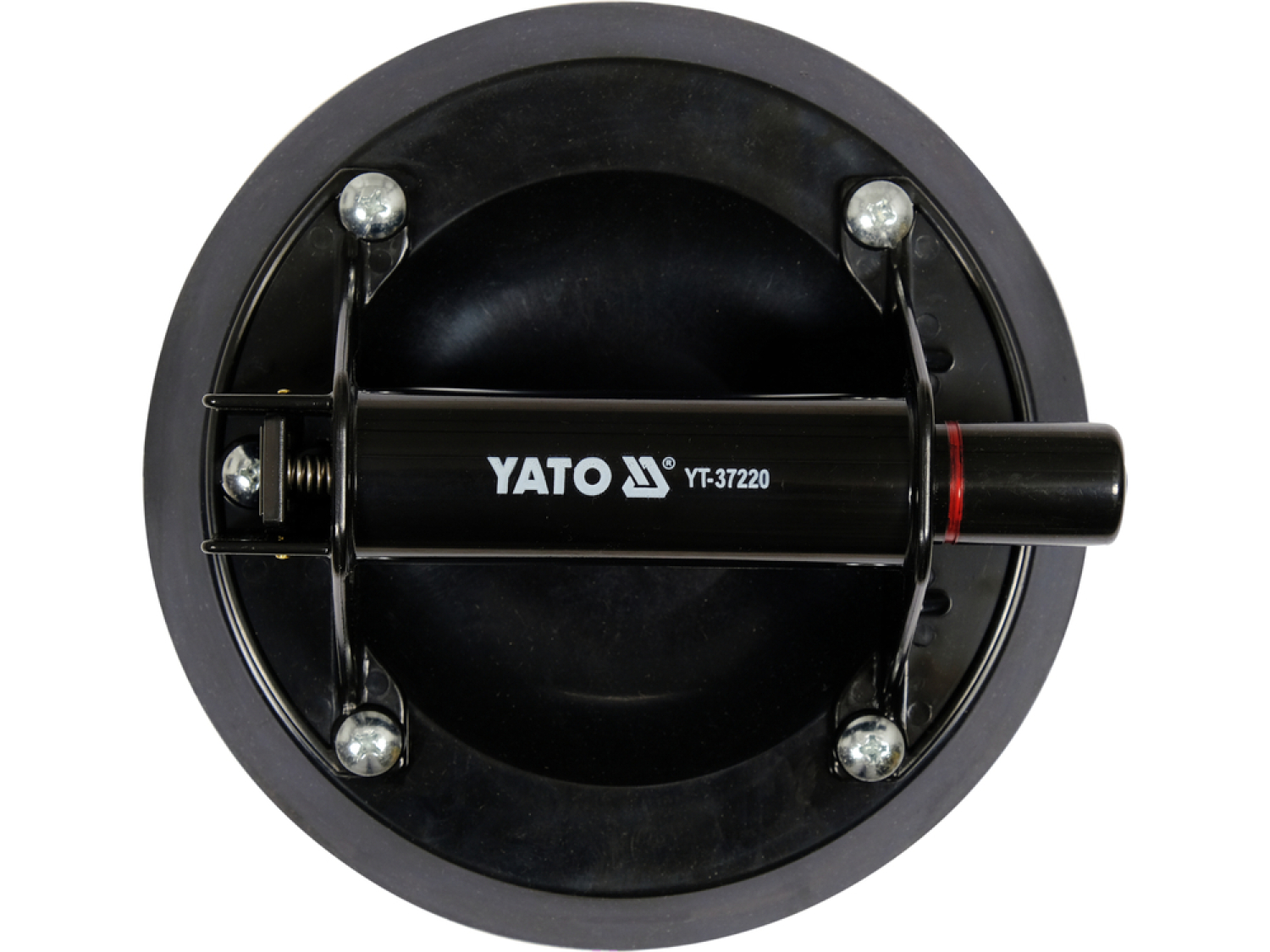

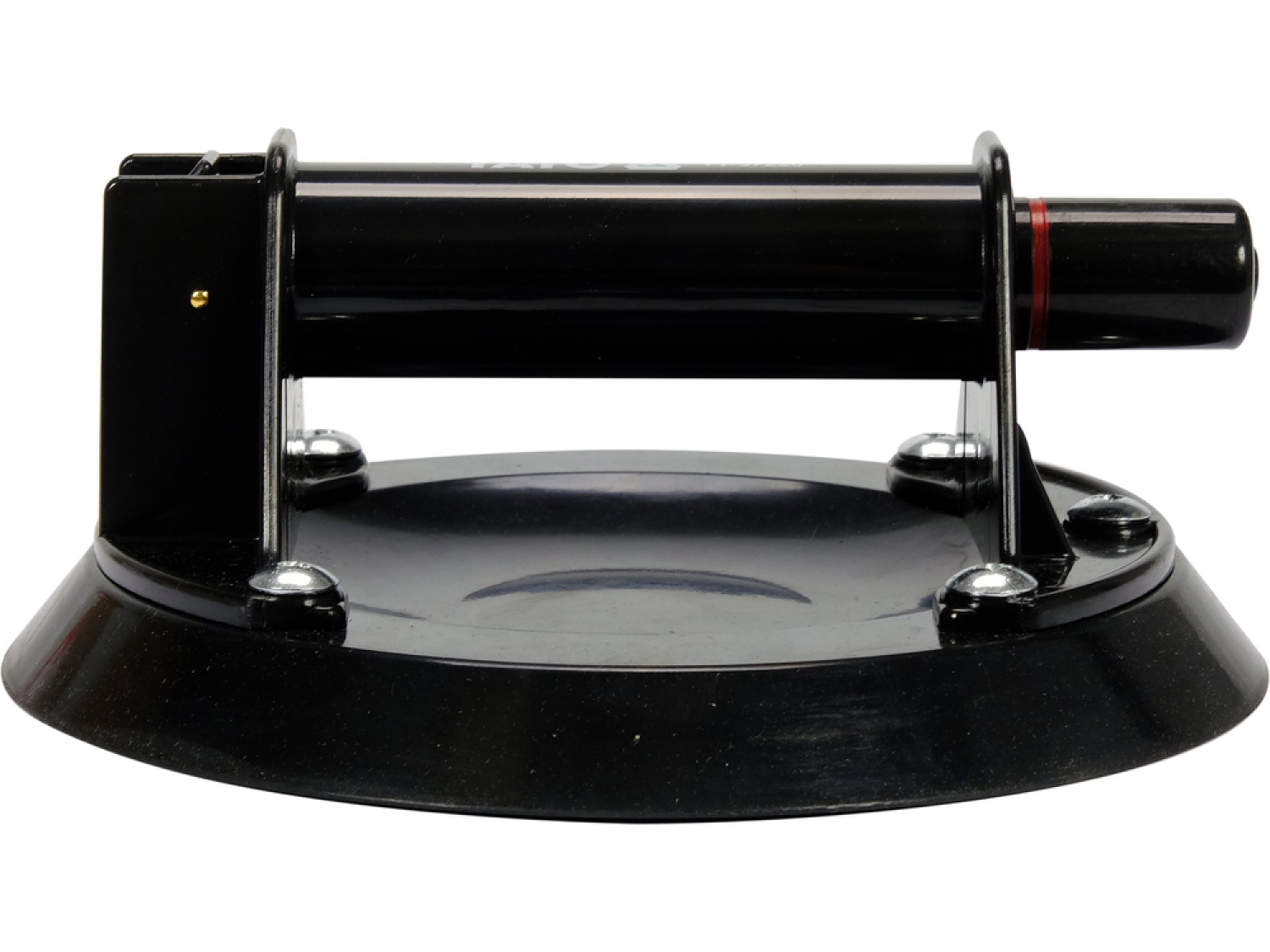

The YATO Vacuum Cup 204mm with Flat Pad (model YT-37220) is a reliable glass holder equipped with a vacuum pump, designed to facilitate the smooth handling of flat and non-porous materials. Constructed from durable ABS plastic, this vacuum cup features a flat rubber suction pad, ensuring a strong grip during use.
With a remarkable lifting capacity of 58 kg (128 lbs), this vacuum cup is ideal for moving glass, laminated panels, sheet metal, and other flat surfaces. It can maintain its hold for over 10 minutes while lifting 125% of the rated load. The cup operates effectively at temperatures ranging from -18°C to 49°C.
To use the vacuum cup, press the flat side against the material, and gently press the pump button multiple times to generate suction, ensuring a secure connection. Release the handle using the button located on it when finished.
