Ajax MotionCam Outdoor wireless outdoor motion detector with built-in camera Jeweller dual PIR sensors 3–15 m detection 640×352 photo verification alarms SmartBracket anti-masking IP55 up to ~3 years battery life on CR123A hub range up to 1700 m white

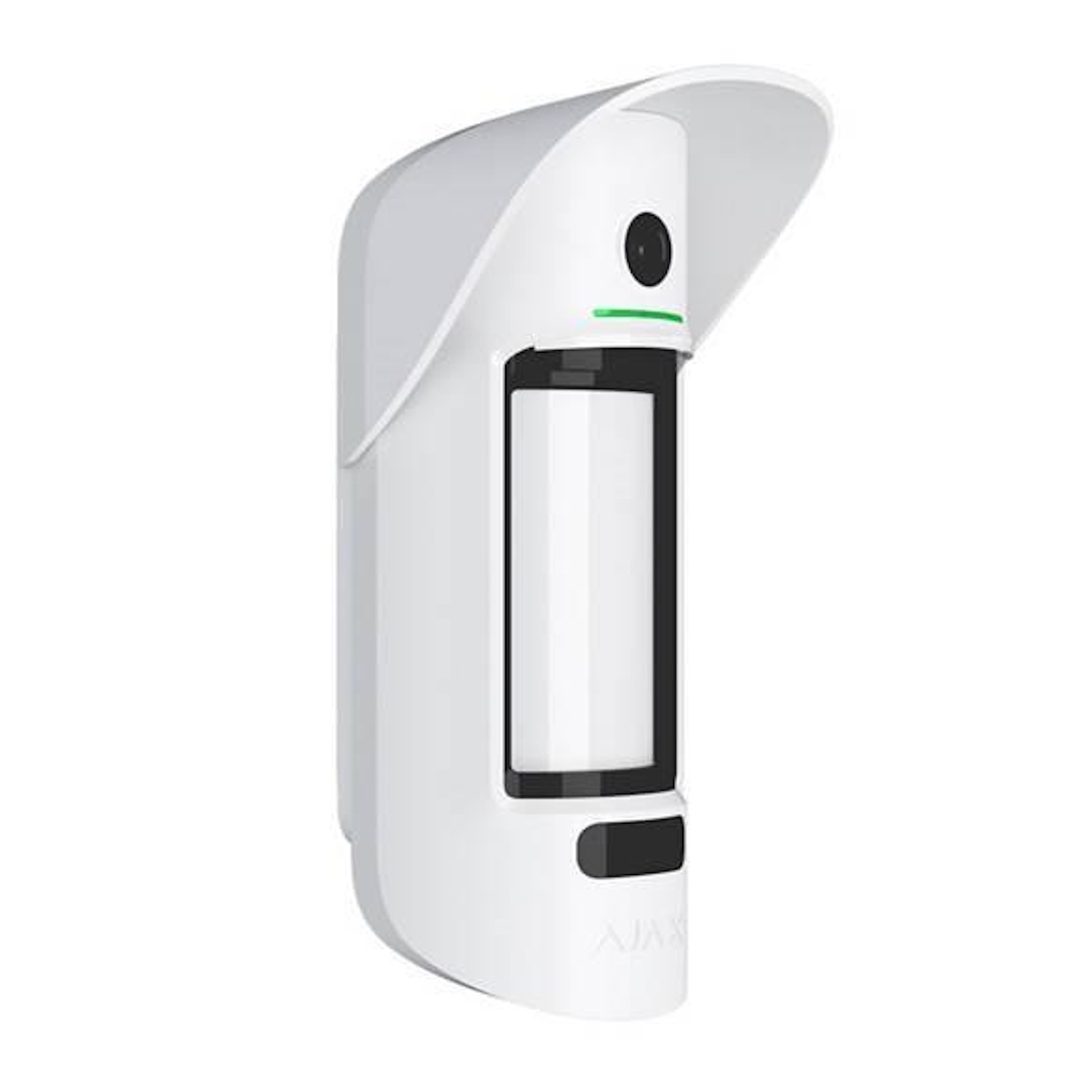

Ajax MotionCam Outdoor Jeweller (38192) is a wireless outdoor motion detector with a built-in camera and photo verification, designed for perimeter and territory protection in outdoor environments. It uses two PIR motion sensors with a 3–15 m detection range and the secure two-way Jeweller wireless protocol with up to ~1700 m radio range, providing fast alarm delivery and visual evidence of events.

Key Advantages

• Two PIR sensors with LISA algorithm → accurate motion detection and reduced false alarms

• Adjustable detection range 3–15 m → protection zone tailored to the site

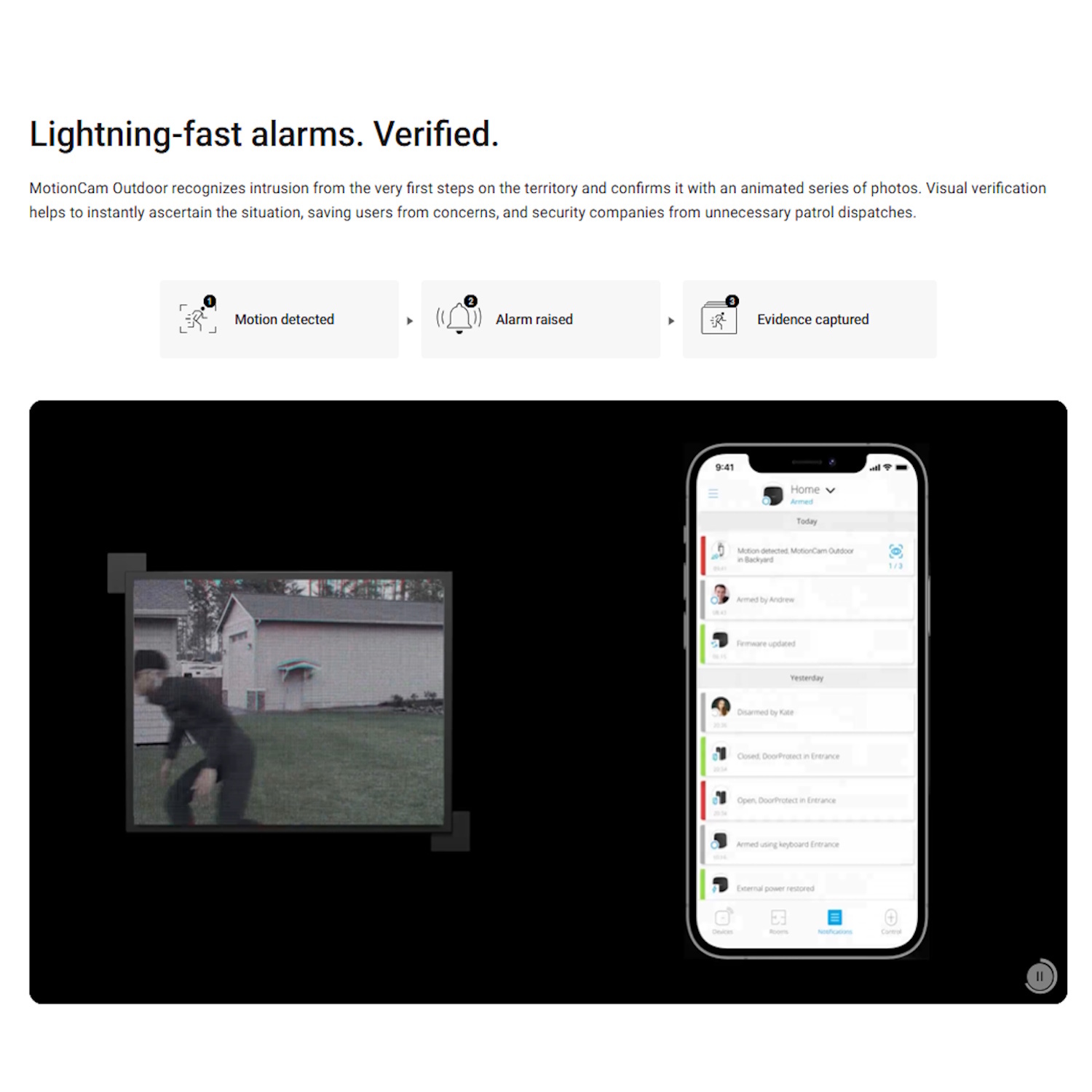

• Photo verification at 640×352 px resolution → visual alarm confirmation

• Jeweller and Wings wireless protocols → fast and secure data and photo transmission

• Anti-masking / anti-sabotage protection → alerts on attempts to block or tamper with the device

• IP55 weather protection → suitable for outdoor installation in rain, dust and temperature changes

• Fast alarm and photo delivery → instant notifications in the app

• Long battery life up to ~3 years → minimal maintenance

Technical Specifications

• Type → outdoor wireless motion detector with camera

• Model → MotionCam Outdoor Jeweller (38192)

• Sensors → 2 × PIR motion sensors

• Motion detection range → 3–15 m (adjustable)

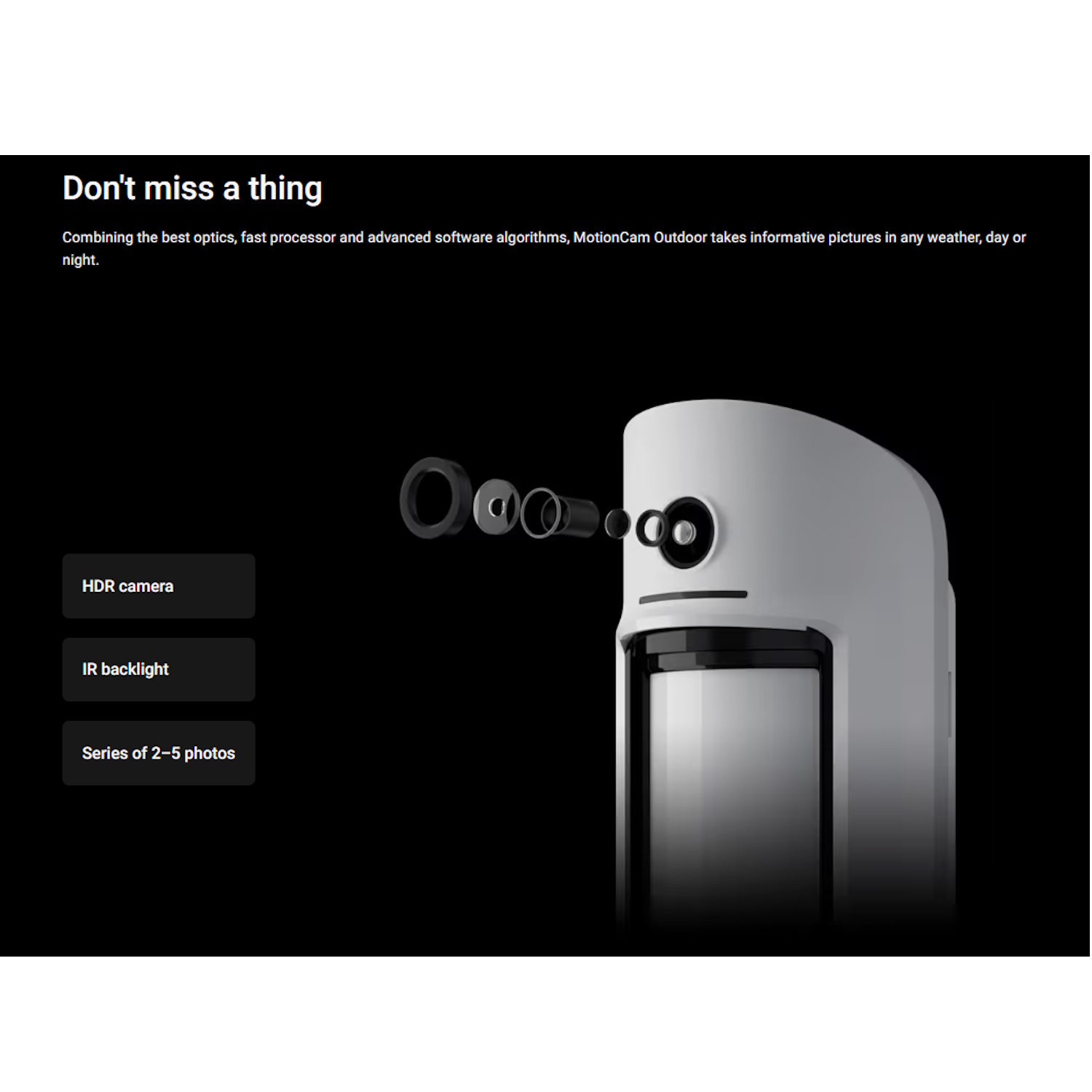

• Photo resolution → 640 × 352 px (maximum)

• Photo series → up to 5 images

• Wireless protocols → Jeweller (alarms) and Wings (photo transmission)

• Radio range → up to ~1700 m in open space

• Protection → IP55 against dust and water splashes

• Anti-masking → yes

• Pet immunity → ignores animals up to ~80 cm when properly installed

• Operating temperature → –25 °C to +60 °C

• Power supply → 4 × CR123A batteries (pre-installed)

• Battery life → up to ~3 years

• Dimensions → 206 × 108 × 93 mm

• Weight → ~470 g

• Color → white

Compatibility

• Ajax Hub 2, Hub 2 Plus or Hub Hybrid — full integration with security system and photo verification

• ReX radio range extenders — optional communication range extension

• Not intended for standalone operation without an Ajax Hub

How to Use

• Install the detector indoors or outdoors — optimal height ~0.8–1.3 m above ground

• Connect the device to an Ajax Hub via the Ajax app

• Adjust the detection range (3–15 m) according to the site layout

• Check radio signal strength and photo verification settings in the app

• Regularly monitor battery level and alarm history

Why Choose This Product
Ajax MotionCam Outdoor Jeweller combines motion detection with photo verification, enabling faster identification of real threats compared to classic PIR sensors. Jeweller and Wings wireless technologies ensure fast and secure alarm and image transmission, while IP55 protection and long battery life make it a reliable solution for outdoor perimeter security.

Real-World Usage Scenarios

• Private house yard — detecting intrusion attempts with photo confirmation

• Garage / gates — fast motion detection with visual event verification

• Territory perimeter — monitoring a wide area with a single detector

• Office outdoor access areas — instant alarms and photo notifications

• Public or courtyard areas — surveillance in high-traffic locations

Package Contents

• Ajax MotionCam Outdoor Jeweller (38192) detector

• SmartBracket mounting panel

• 4 × CR123A batteries (pre-installed)

• Mounting accessories and user manual

About the Brand
Ajax Systems is a security technology manufacturer delivering high-quality wireless sensors with photo verification and secure communication, providing fast alarm transmission and visual insight into events to make security systems more effective and reliable for homes and businesses.
