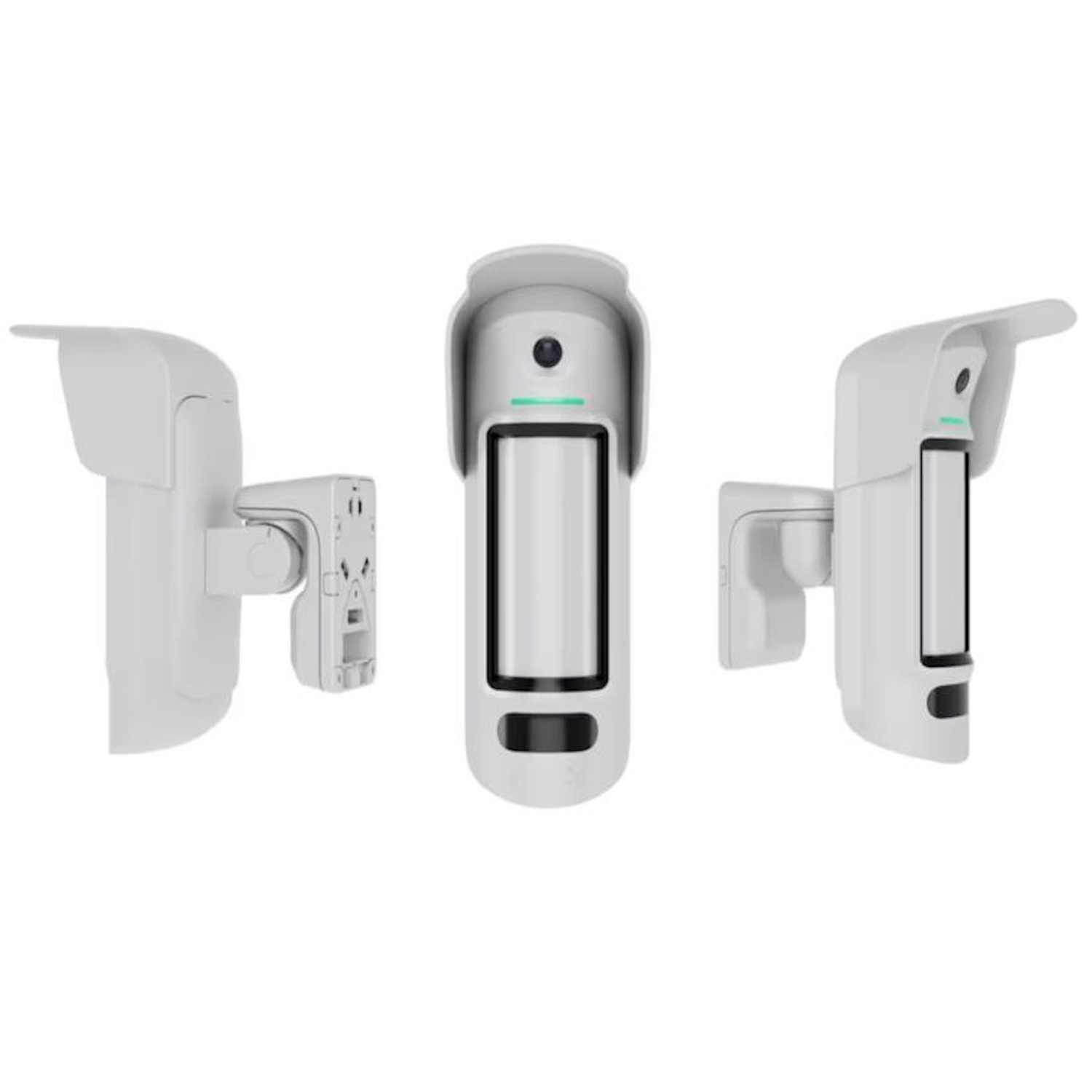

Ajax MotionCam Outdoor HighMount PhOD wireless outdoor motion detector with camera and PhOD photo-on-demand Jeweller dual PIR + microwave up to 15 m 640×480 photo verification SmartBracket anti-masking tamper protection up to ~3 years on CR123A batteries white

Ajax MotionCam Outdoor HighMount PhOD Jeweller is a wireless outdoor motion detector with a camera and PhOD photo verification function, designed for perimeter and outdoor area protection. The device uses dual PIR and microwave sensing technology with a detection range of up to 15 m, providing accurate alarm detection and visual event verification. It is intended for outdoor installation at a height of 2…4 m and operates via the Jeweller wireless protocol with a radio range of up to 1700 m.

Key Advantages

• Dual PIR + microwave sensors → accurate motion detection with reduced false alarms

• 15 m detection range → wide coverage for perimeter or outdoor areas

• PhOD photo verification → photos captured after alarms or on-demand via the app

• SmartDetect motion filter → reduced false alarms by filtering insignificant environmental factors

• Anti-masking → detects attempts to block or limit the sensor’s field of view

• Jeweller two-way RF protocol → secure, low-latency alarm transmission to the hub

• Up to ~3 years on CR123A batteries → long autonomous operation without frequent replacement

• Designed for 2–4 m installation height → optimal coverage and detection performance

Technical Specifications

• Type → wireless outdoor motion detector with camera

• Model → MotionCam Outdoor HighMount (PhOD) Jeweller

• Sensing technology → 2 × PIR + K-band microwave sensor

• Detection range → up to 15 m

• Photo resolution → up to ~640×480 px (HDR and IR enabled)

• Wireless protocol → Jeweller (approximately 868 MHz)

• Radio range → up to 1700 m in open space

• Anti-masking → yes

• Pet immunity → up to ~80 cm (with proper configuration)

• Power supply → CR123A 3 V (pre-installed)

• Battery life → up to ~3 years

• Operating temperature → approximately −25 °C to +60 °C

• Protection rating → suitable for outdoor use (IP55 / equivalent by model classification)

• Mounting → installation at 2–4 m using SmartBracket

• Color → white

Compatibility

• Ajax Hub, Hub 2, Hub 2 Plus and other Jeweller hubs — full system integration

• ReX / Rex2 range extenders — optional radio coverage extension

• Not intended for use with systems that do not support the Jeweller protocol

How to Use

• Select a suitable outdoor location on a corner, fence or wall within the protected zone

• Install the device at a height of 2–4 m using the SmartBracket mount

• Add the detector to the Ajax hub via the mobile app and configure settings

• Check radio signal strength and detection zone before arming the system

• Enable PhOD photo verification features in the app to receive images after alarms

Why Choose This Product
Ajax MotionCam Outdoor HighMount PhOD Jeweller combines accurate outdoor motion detection with photo verification, providing real-time visual confirmation of alarm events. Its dual-sensor system with microwave support and anti-masking significantly reduces false alarms, while long battery life and wide radio range make it a reliable solution for protecting large outdoor areas, perimeters and property boundaries.

Real-World Usage Scenarios

• Private house perimeter and garden — fast motion detection with visual alarm confirmation

• Garages and warehouse zones — monitoring large outdoor areas

• Commercial building façades — visual alarm authentication with photos

• Paid parking areas or gates — quick event identification and notifications

• Fence perimeter zones — precise monitoring of narrow detection areas

Package Contents

• Ajax MotionCam Outdoor HighMount PhOD Jeweller detector

• SmartBracket mount

• Pre-installed CR123A batteries

• Mounting accessories and user manual
