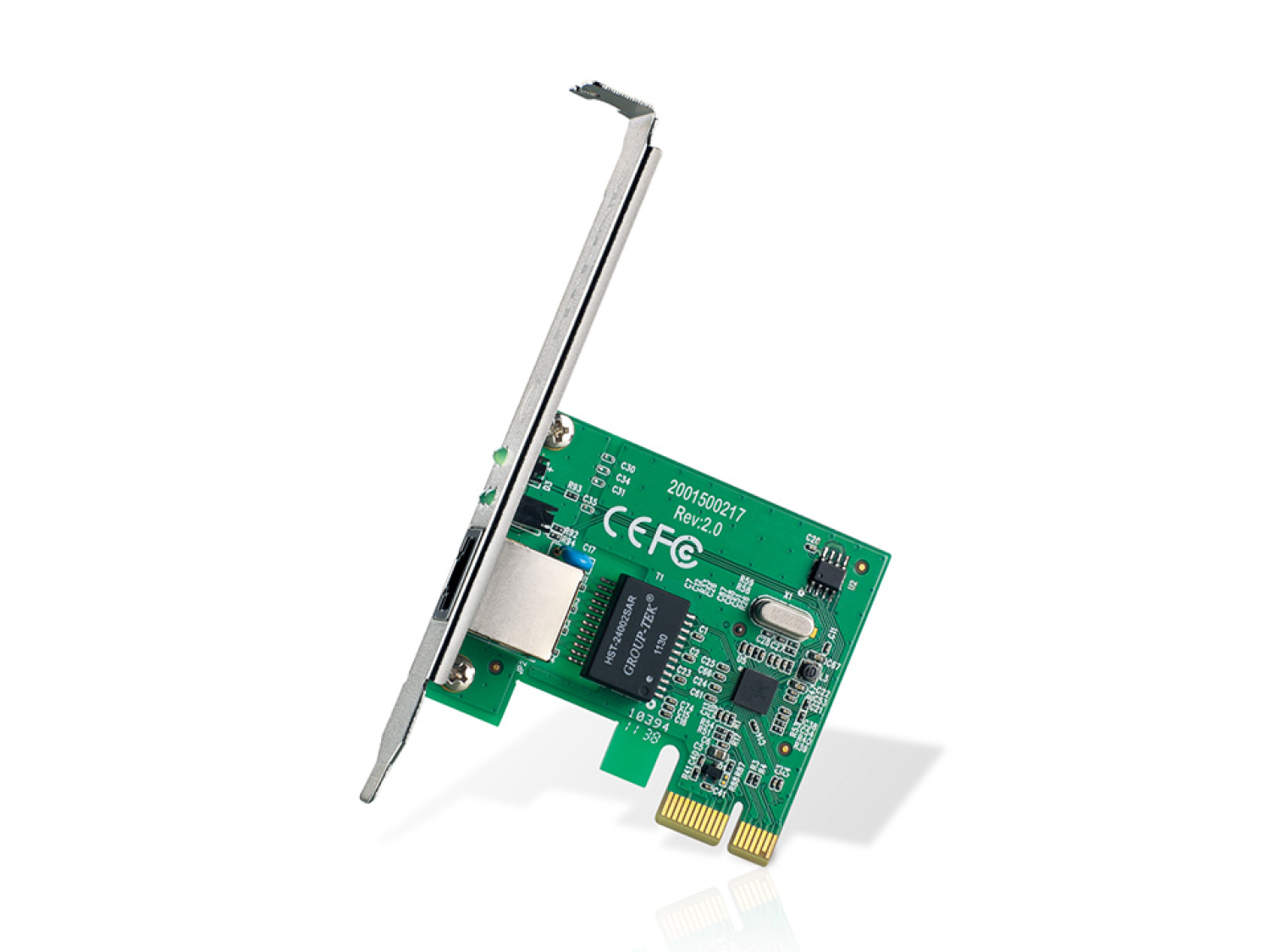

TP-Link TG-3468 Gigabit PCI Express network adapter 10/100/1000 Mbps PCIe 32-bit interface White

The TP-Link TG-3468 Gigabit PCI Express Network Adapter is a stable wired Ethernet solution for desktop computers, providing high-performance gigabit network connectivity through a 10/100/1000 Mbps port and a PCIe x1 interface. The device is designed to improve computer network connectivity, especially when the built-in network card does not support gigabit speeds or is damaged.

Key Advantages

• Gigabit Ethernet (10/100/1000 Mbps) → provides fast data transfer and stable network connectivity for everyday internet use and data transmission

• PCI Express x1 interface → direct connection to a desktop PCIe slot using a fast and efficient data path

• Auto-Negotiation and Auto MDI/MDIX → automatically adjusts speed and cable type, eliminating configuration errors

• Supports 802.3x Flow Control → designed for data flow control and improved stability in full-duplex mode

• Wake-on-LAN support → allows the computer to be powered on remotely via a network signal

• Wide OS support → compatibility with popular Windows versions; some sources indicate Linux support depending on drivers

• Easy installation → plug-and-play with standard PCIe slots in desktop PCs

• PCIe-optimized dimensions → compact design that does not interfere with other expansion cards

Technical Specifications

• Type → Gigabit PCIe network adapter

• Model → TP-Link TG-3468

• Connection (interface) → 32-bit PCI Express x1

• Ethernet port → 1 × 10/100/1000 Mbps RJ45

• Network standards → IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

• Data transfer modes → 10/100/1000 Mbps (half/full duplex); up to 2000 Mbps in full duplex mode

• Protocols and technologies → Auto-Negotiation, Auto MDI/MDIX, 802.3x Flow Control, VLAN tag support (802.1q), priority support (802.1p)

• LED indicators → link and activity status indicators

• Wake-on-LAN → supported

• Power supply → from PCIe slot power; energy-efficient operation

• Standards certification → CE, FCC, RoHS

• Included → PCIe card, low-profile bracket (if included), installation guide

Compatibility

• Compatible with → desktop computers with PCIe x1 slots or larger (x4/x8/x16)

• Network compatibility → works with Ethernet networks using 10/100/1000 Mbps connections

• Operating system support → Windows (XP to Windows 11/10/8.1/7 depending on drivers); some Linux distributions may require additional drivers

• Not compatible with → devices without PCIe slots (for example, most laptops without adapter solutions)

How to Use

• Power off the computer and disconnect it from the power source

• Open the case side panel and insert the TG-3468 into a PCIe slot (x1 or longer)

• Ensure the card is firmly seated in the slot and secured with a screw

• Power on the computer and install drivers if they are not installed automatically

• Connect an Ethernet cable from a router or network switch to the TG-3468 RJ45 port

• Check the LED indicators to confirm proper connection operation

Why Choose This Product
The TP-Link TG-3468 delivers stable gigabit network performance via a PCI Express interface and is particularly suitable for desktop computers without a built-in gigabit card or with an older Ethernet module. Its wide protocol compatibility, automatic configuration, and Wake-on-LAN support ensure reliable and flexible network operation for both everyday use and more demanding data-intensive scenarios.

Real-World Usage Scenarios

• Improving computer network speed compared to 100 Mbps cards

• Stable network connectivity in gaming PCs with minimal latency

• Multimedia streaming and file transfer over a gigabit network

• Using Wake-on-LAN for remote computer power-on

• Replacing or upgrading network cards in older PCIe systems

Package Contents

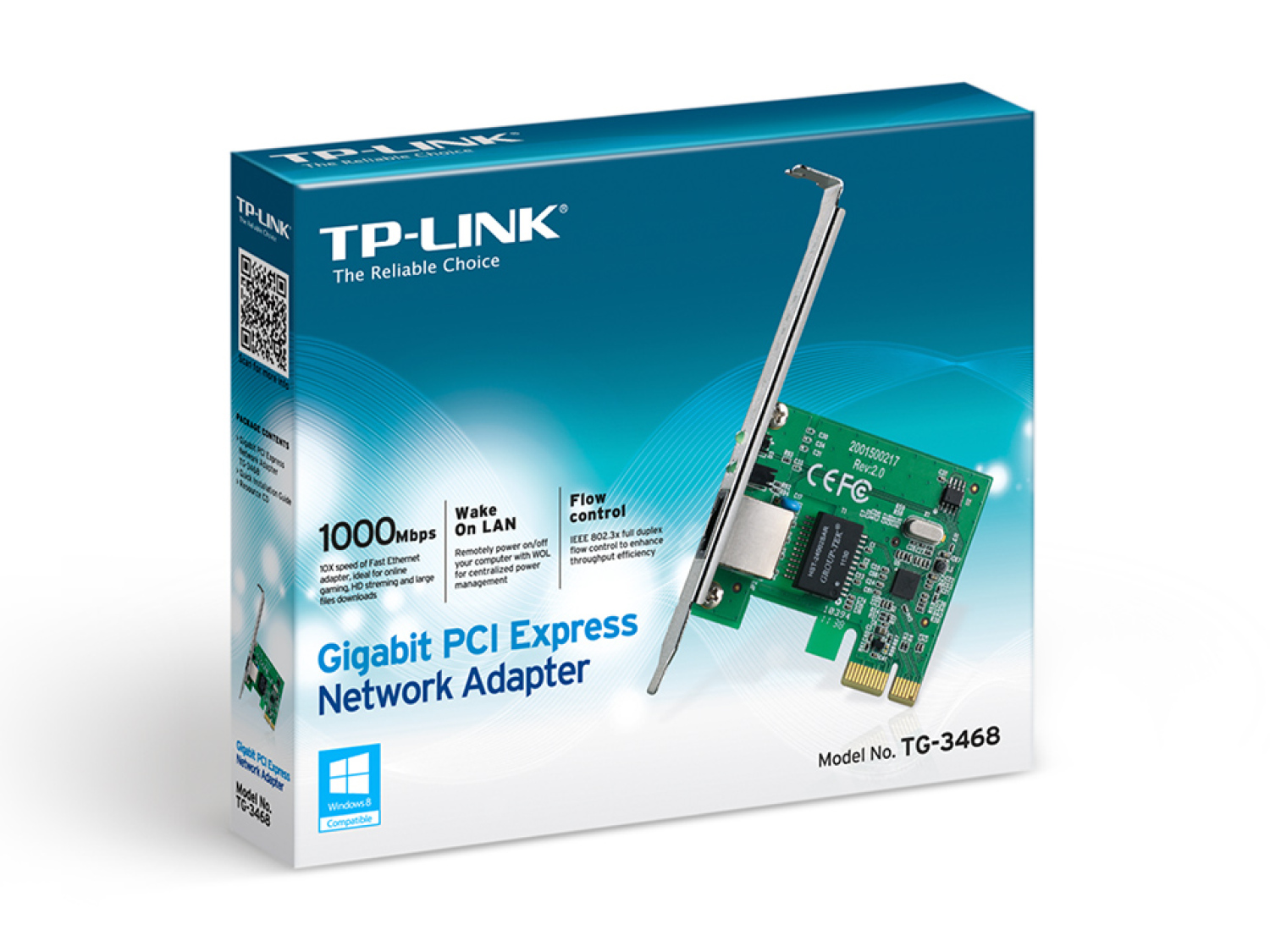

• TP-Link TG-3468 Gigabit PCI Express Network Adapter

• Quick installation guide / resource CD

• Low-profile bracket (if included)

About the Brand
TP-Link is a global networking technology manufacturer offering stable, reliable, and cost-effective network adapters and infrastructure solutions for home and business users, combining high-quality hardware with broad compatibility and intuitive usability.
