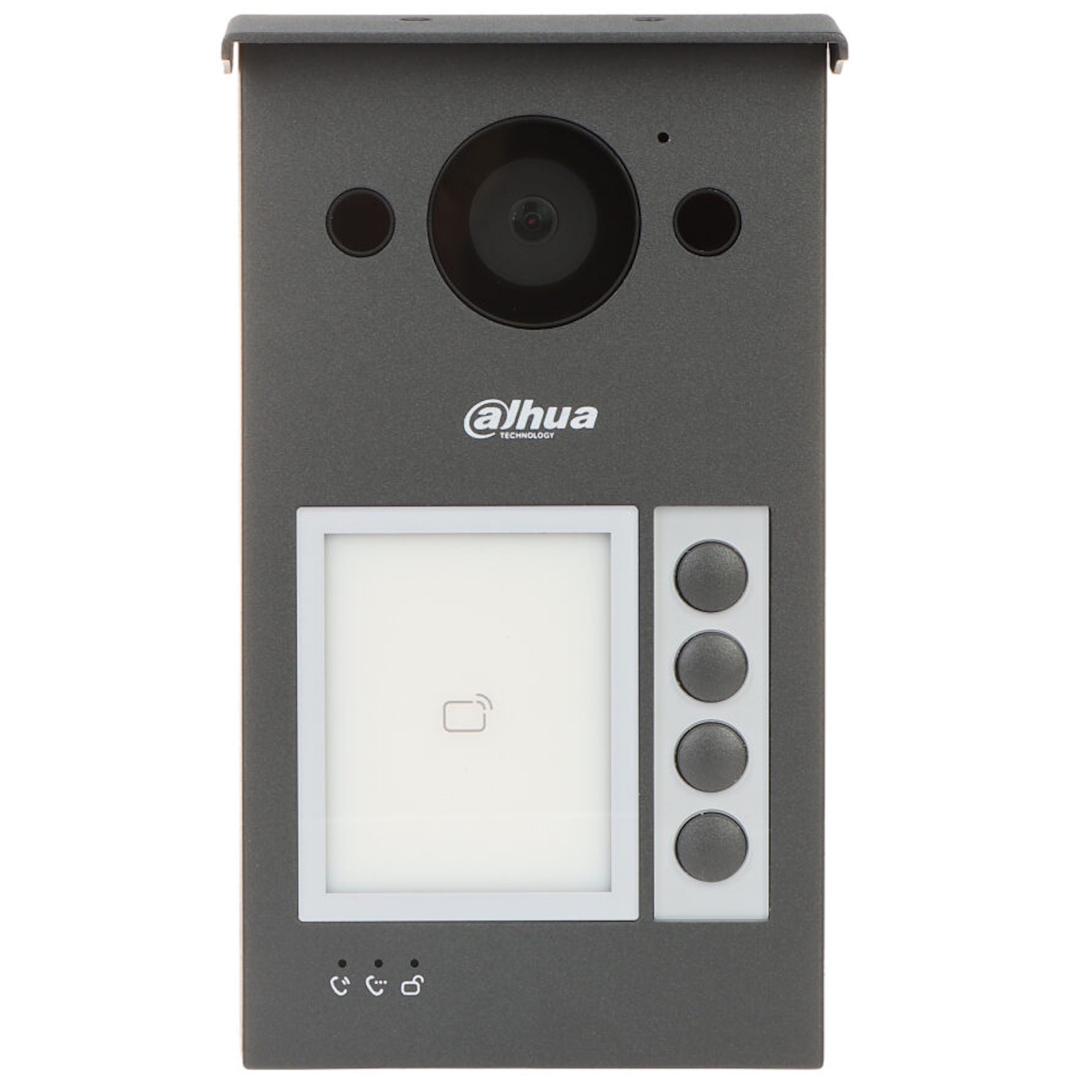

Dahua IP door intercom 4-button outdoor panel 2 MP HD camera two-way audio IR night vision IK08 vandal resistance PoE/DC12 V RFID unlock VTO3312Q-P Grey/Metal

Dahua VTO3312Q-P is a robust outdoor IP video door intercom with four mechanical buttons, featuring a 2 MP HD camera, two-way audio, and RFID access unlocking. It is designed for private houses, villas, and small commercial properties, providing secure visitor identification and flexible access control options. The device is resistant to weather conditions and physical impact and can be integrated with indoor monitors and modern IP security systems.

Key Advantages

• 2 MP HD CMOS camera → clear video for visitor identification

• 125° wide viewing angle → extended coverage at the entrance

• IR night vision → reliable image quality in low-light conditions

• Two-way audio → clear voice communication between visitor and indoor monitor

• RFID card unlocking → additional keyless access control level

• PoE or DC12 V power supply → flexible single-cable or traditional installation

• H.264/H.265 video compression → efficient video transmission and storage usage

• IP65 protection → resistance to rain and dust for outdoor use

• IK08 vandal resistance → increased protection against mechanical impact

Technical Specifications

• Type → outdoor IP video door intercom with 4 mechanical buttons

• Model → VTO3312Q-P

• Camera sensor → 1/2.8″ 2 MP HD CMOS

• Resolution → HD; H.264/H.265 video compression

• Viewing angle → H:125°, V:65°, D:139°

• Night vision → automatic IR illumination switching

• Audio → two-way with built-in microphone and speaker

• Access control → IC card (RFID) reader (~3000 cards)

• Storage → microSD up to 256 GB (via monitor or door panel)

• Network protocols → RTSP, DNS, P2P, UPnP, SIP, ONVIF, CGI, etc.

• Connection → RJ-45 / two-wire 10/100 Mbps

• Power supply → PoE (802.3af) or DC12 V

• Protection rating → IP65, IK08

• Housing material → metal housing

• Dimensions → approximately 188 × 107 × 30 mm

• Color → grey / metallic

Compatibility

• Compatible with IP video door monitors and indoor intercoms supporting ONVIF and SIP

• Supports remote call reception and door unlocking via monitor or mobile applications (if supported by the system)

• Not intended for use as a standalone analog door panel without IP connectivity

How to Use

• Mount the panel near the entrance at an appropriate height with a clear view of visitors

• Connect power using PoE or a DC12 V power source

• Connect to the network via Ethernet or two-wire connection to a monitor or server

• Configure network and unlocking settings via an indoor monitor or web interface

• Register and manage RFID cards for access control

• Test two-way audio and night vision to ensure optimal operation

Why Choose This Product
Dahua VTO3312Q-P combines high-quality video, a robust metal housing with IK08 vandal resistance, and IP65 weather protection, delivering reliable outdoor intercom performance. RFID unlocking support, flexible power options, and efficient video compression make it a practical solution for modern access control systems with broad IP security system compatibility.

Real-Life Use Scenarios

• Enhancing private house entrance security with video and audio transmission

• Access control for villas or premium properties using RFID cards

• Office entrance monitoring and visitor identification

• Integration with IP video intercom monitors and SIP systems

• Remote unlocking and call notifications when away

Package Contents

• Dahua VTO3312Q-P IP video door panel

• Rain cover and mounting screws

About the Brand
Dahua Technology is a global security technology brand developing innovative IP video intercom solutions focused on high security, stable performance, and integration with a wide ecosystem of door and video surveillance systems for modern residential and commercial needs.
