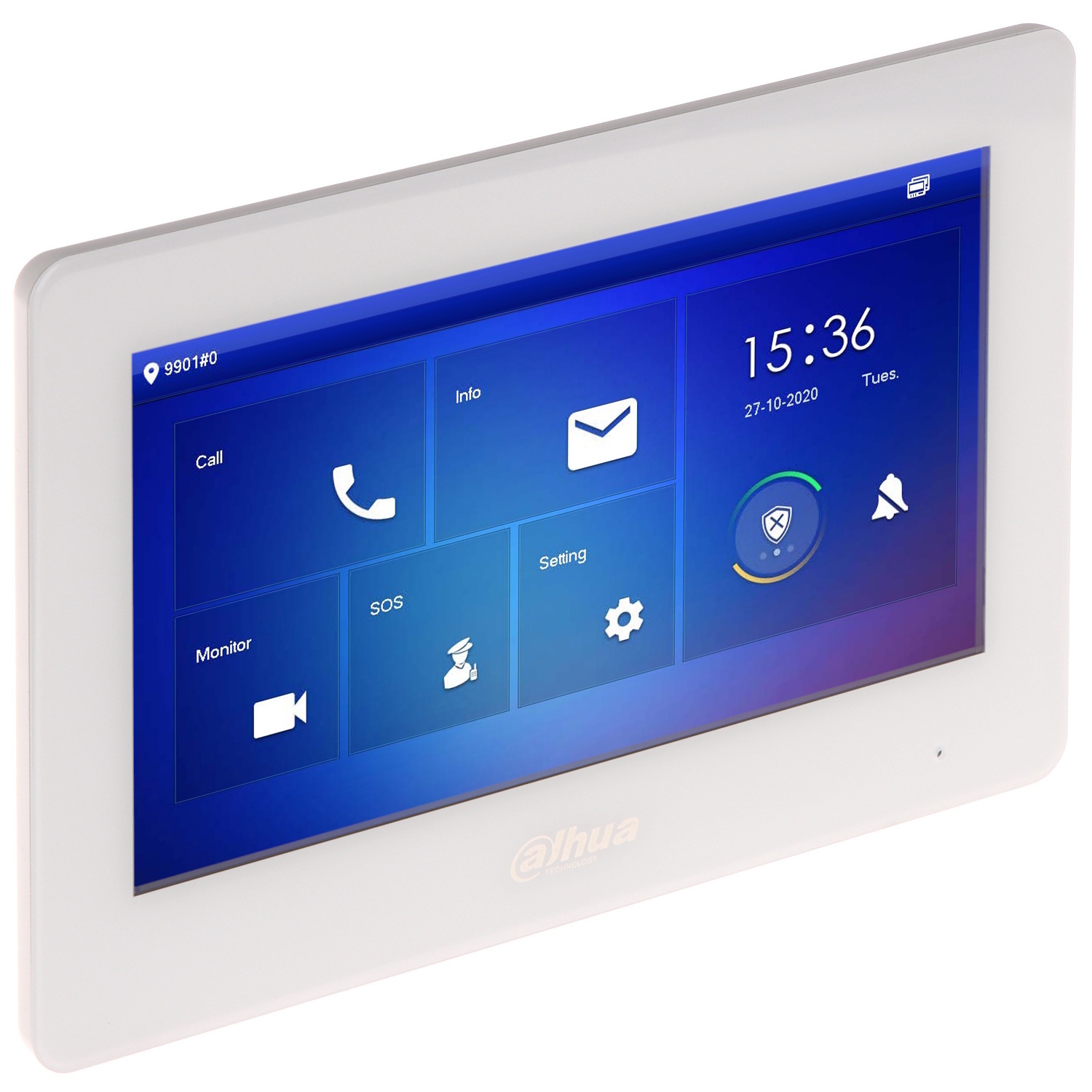

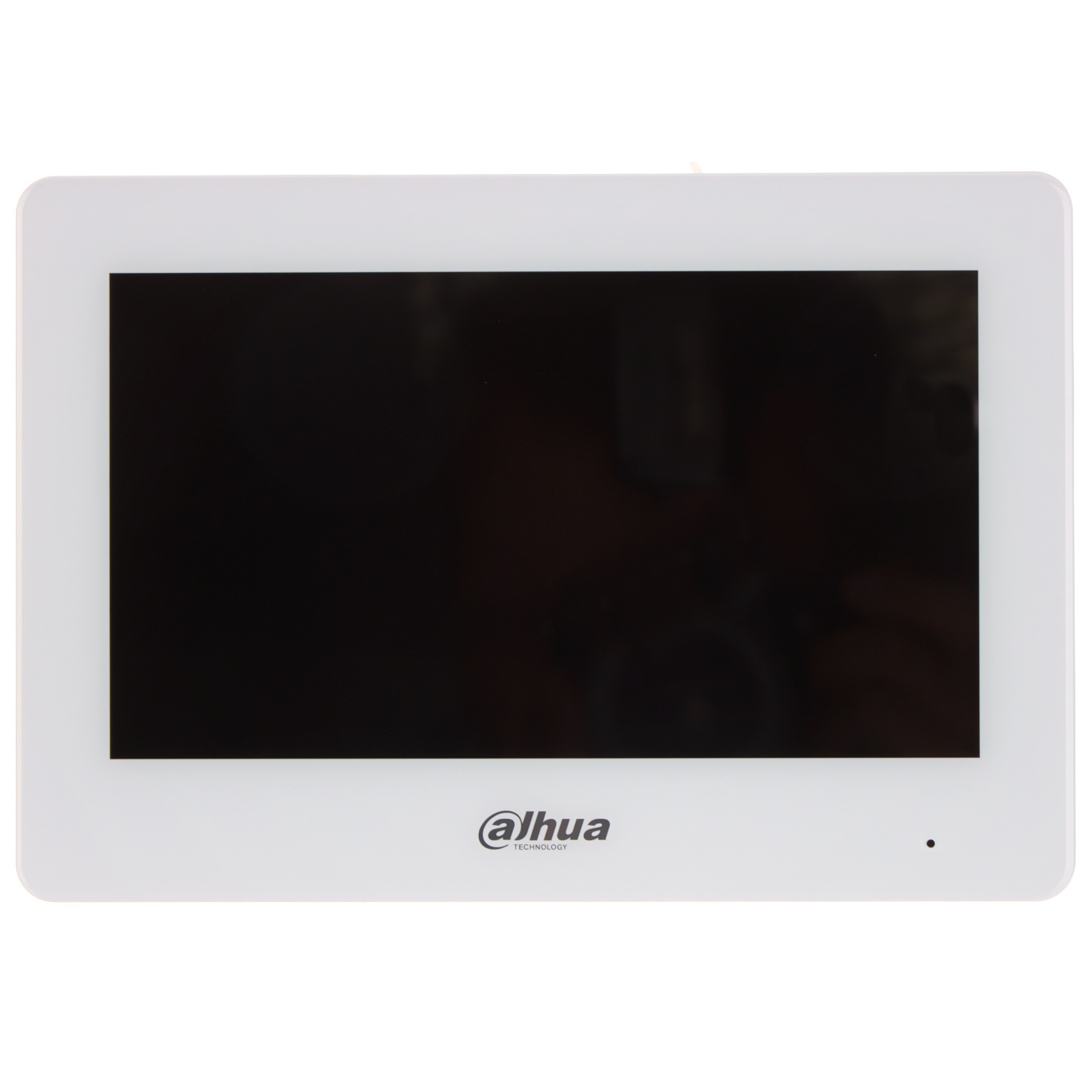

Dahua VTH5422HW-W IP Wi-Fi video intercom indoor monitor 7″ TFT capacitive touch 1024×600 Wi-Fi two-way audio H.265/H.264 video decode SD support 6 alarm inputs/1 output White

Dahua VTH5422HW-W is a compact, multifunctional 7″ TFT touchscreen indoor IP/Wi-Fi monitor that provides direct video and audio communication with outdoor intercoms, supports Wi-Fi connectivity, video decoding, and alarm expansion via alarm inputs/outputs, delivering a modern intercom experience for home and office environments.

Key Advantages

• 7″ TFT capacitive touchscreen → intuitive control and clear video image

• 1024×600 resolution → good detail level for video calls

• Built-in Wi-Fi → wireless network connection and remote access

• H.265/H.264 video decoding → efficient video transmission and playback

• Two-way audio communication → clear voice communication with visitors

• Micro-SD support up to 64 GB → local video and audio storage

• 6 alarm inputs → expandable integration with external sensors

• 1 alarm output → one device can trigger an external alarm or signal

• Ethernet port → option for wired network connection

• ONVIF and SIP protocol support → broader system integration

Technical Specifications

• Type → IP/Wi-Fi indoor door intercom monitor

• Model → VTH5422HW-W

• Display → 7″ TFT capacitive touchscreen

• Resolution → 1024 × 600

• Video decoding → H.265, H.264

• Wi-Fi standard → IEEE802.11b/g/n

• Micro SD support → up to 64 GB

• Alarm inputs → 6

• Alarm output → 1

• RS-485 port → 1

• Network connection → 2-wire digital/10/100 Mbps Ethernet

• Audio compression → G.711a/G.711u/PCM

• Operating system → built-in Linux

• Power supply → 48 VDC / 1.25 A (standard PoE)

• Housing material → PC + ABS

• Dimensions → 189.0 × 130.0 × 26.9 mm

• Weight → ~0.35 kg

• Operating temperature → –10 °C to +55 °C

• Color → white

Compatibility

• Compatible with → IP video door stations, doorbells, and SIP systems

• Wi-Fi functionality → enables connection to the home network and mobile apps such as DMSS

• Not intended for → use as a standalone video doorbell without IP/SIP connectivity

How to Use

• Install the monitor indoors on a wall or vertical surface

• Connect the monitor to the door station system via 2-wire or Ethernet

• Set up Wi-Fi connection to the home network to enable remote access via an app

• Insert a Micro-SD card to store snapshots or short videos

• Configure alarm input devices (motion sensors, etc.)

• Answer door calls and communicate with visitors live

Why Choose This Product
Dahua VTH5422HW-W delivers stable IP and Wi-Fi connectivity, a large touchscreen, and expandable alarm integration, making it a practical indoor monitor for residential homes and offices. H.265 video decoding and Wi-Fi support enable flexible access control management with mobile app functionality and local storage via a Micro-SD card.

Real-Life Use Scenarios

• Video communication with visitors at the outdoor door station

• Indoor monitoring hub in a home video security system

• Integration with alarm sensors (e.g., motion detectors)

• Storing short video clips on a Micro-SD card

• Wi-Fi communication with a mobile app while at home or away

Package Contents

• Dahua VTH5422HW-W 7″ IP/Wi-Fi monitor

• Surface mounting bracket and accessories

About the Brand
Dahua Technology is a global security technology brand focused on innovation and stable IP video door solutions, providing a broad intercom ecosystem with high-quality audio/video features and easy integration into modern security systems.
