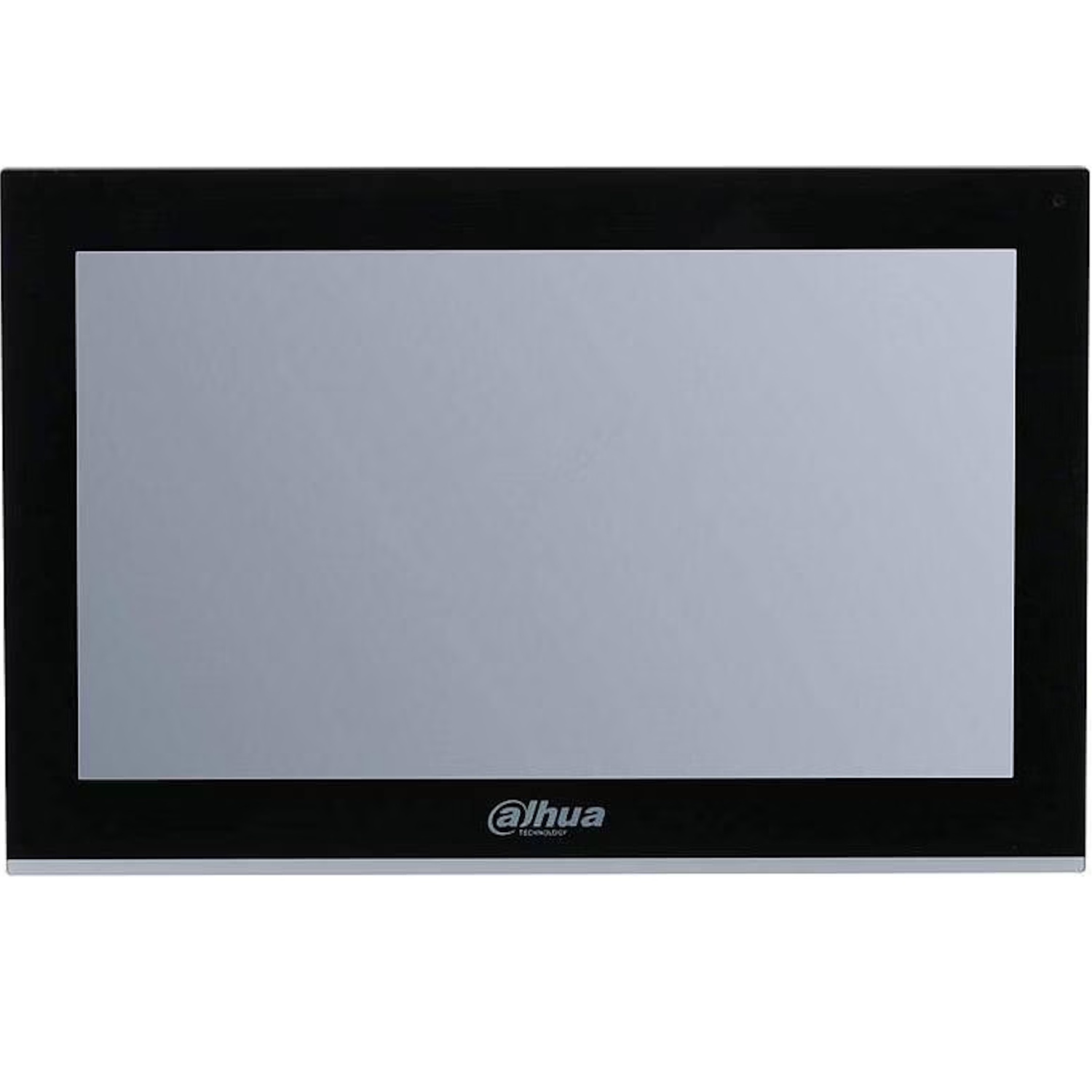

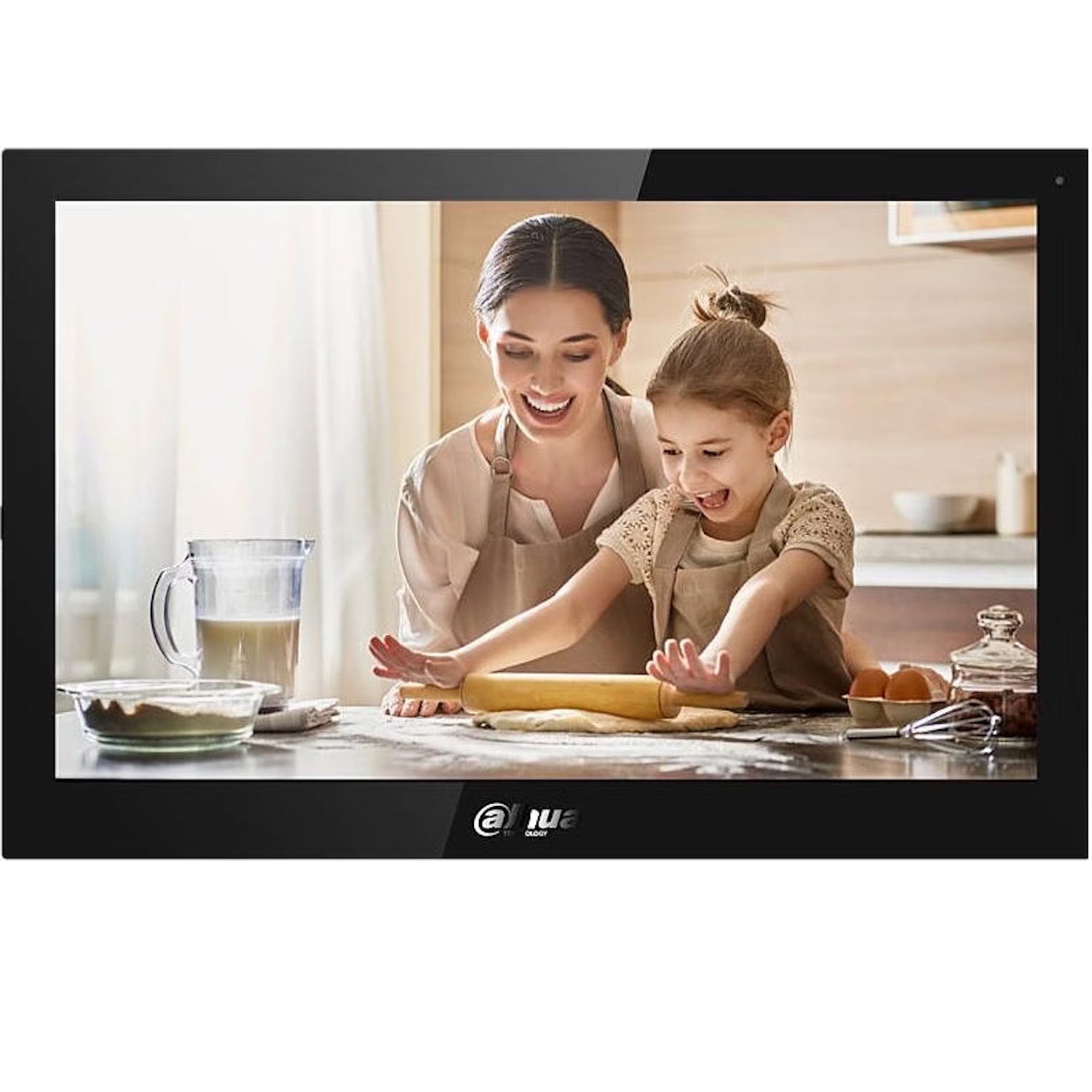

Dahua VTH5341G-W LCD 10″ monitor for IP video intercom 10″ TFT capacitive touch Android 8.1 1024×600 Wi-Fi Ethernet two-way audio micro-SD up to 256 GB H.264 Black

Dahua VTH5341G-W is a high-end indoor IP video intercom with a large touchscreen and Android 8.1 operating system, providing intuitive control, clear video, and flexible network connectivity via both Ethernet and Wi-Fi. The device is designed for central video and audio communication with outdoor door stations in residential houses, offices, or smart intercom systems.

Key Advantages

• 10″ TFT touchscreen → large, clear video image and convenient control

• Android 8.1 operating system → modern, user-friendly interface

• Built-in Wi-Fi and Ethernet → flexible choice of network connection

• 1024×600 resolution → image with a good level of detail

• H.264 video compression → efficient video transmission and playback

• Two-way audio → direct conversation with the visitor

• Echo suppression/DNR audio enhancement → clearer voice transmission quality

• Micro-SD support up to 256 GB → expanded local storage for recordings

• TCP/IP, SIP, RTSP protocol support → compatibility with IP/SIP door stations and systems

• Option to leave video or text messages → additional communication features

Technical Specifications

• Type → 10″ indoor IP video intercom

• Model → VTH5341G-W

• Display → 10″ TFT LCD with capacitive touchscreen panel

• Resolution → 1024×600

• Operating system → Android 8.1

• Video compression → H.264

• Audio compression → PCM

• Network protocols → IPv4, TCP, SIP, UDP, RTSP

• Interfaces → 1× 10/100 Mbps Ethernet; Wi-Fi IEEE 802.11b/g/n

• Audio → 1 omnidirectional microphone, built-in 1.5 W speaker

• Audio mode → two-way voice call

• Storage → Micro-SD up to 256 GB

• Additional ports → RS-485; 8 alarm inputs; 1 alarm output

• Power supply → 12 V DC; PoE support (802.3af)

• Material → PC+ABS housing

• Color → black

• Dimensions → ~260 × 170 × 15–25 mm

• Weight → ~0.77 kg

• Operating temperature → –10 °C to +55 °C

Compatibility

• Compatible with → IP video intercom systems supporting the SIP protocol

• Supports → Wi-Fi and wired Ethernet connections with Dahua and other SIP-based solutions

• Not intended for → use as a standalone video doorbell without connection to a door intercom system

How to Use

• Install the monitor indoors on a wall or vertical surface

• Connect the device to the local network via Wi-Fi or Ethernet

• Connect to a compatible IP door station or SIP server

• Configure network settings and SIP/password via the Android interface

• Manage call notifications and live audio/video communication

• Set up micro-SD storage for video recordings

Why Choose This Product
Dahua VTH5341G-W provides a large 10″ touchscreen, a modern Android interface, and flexible network connectivity, making it a convenient and capable indoor IP video intercom monitor. Advanced audio/video features, expandable storage, and network protocol support ensure reliable daily communication between door stations and indoor units.

Real-Life Use Scenarios

• Monitoring visitors at an apartment or private house entrance

• Indoor access control and communication in an office

• Central management of video intercoms in larger households

• Intercom integration with a smart home system

• Managing video calls and messages via the Android interface

Package Contents

• Dahua VTH5341G-W 10″ IP monitor

• Surface mounting bracket and accessories

• RS-485 cable and power connectors

About the Brand
Dahua Technology is a global security technology brand focused on innovation, reliability, and high-quality video security solutions tailored for both home and commercial use.
