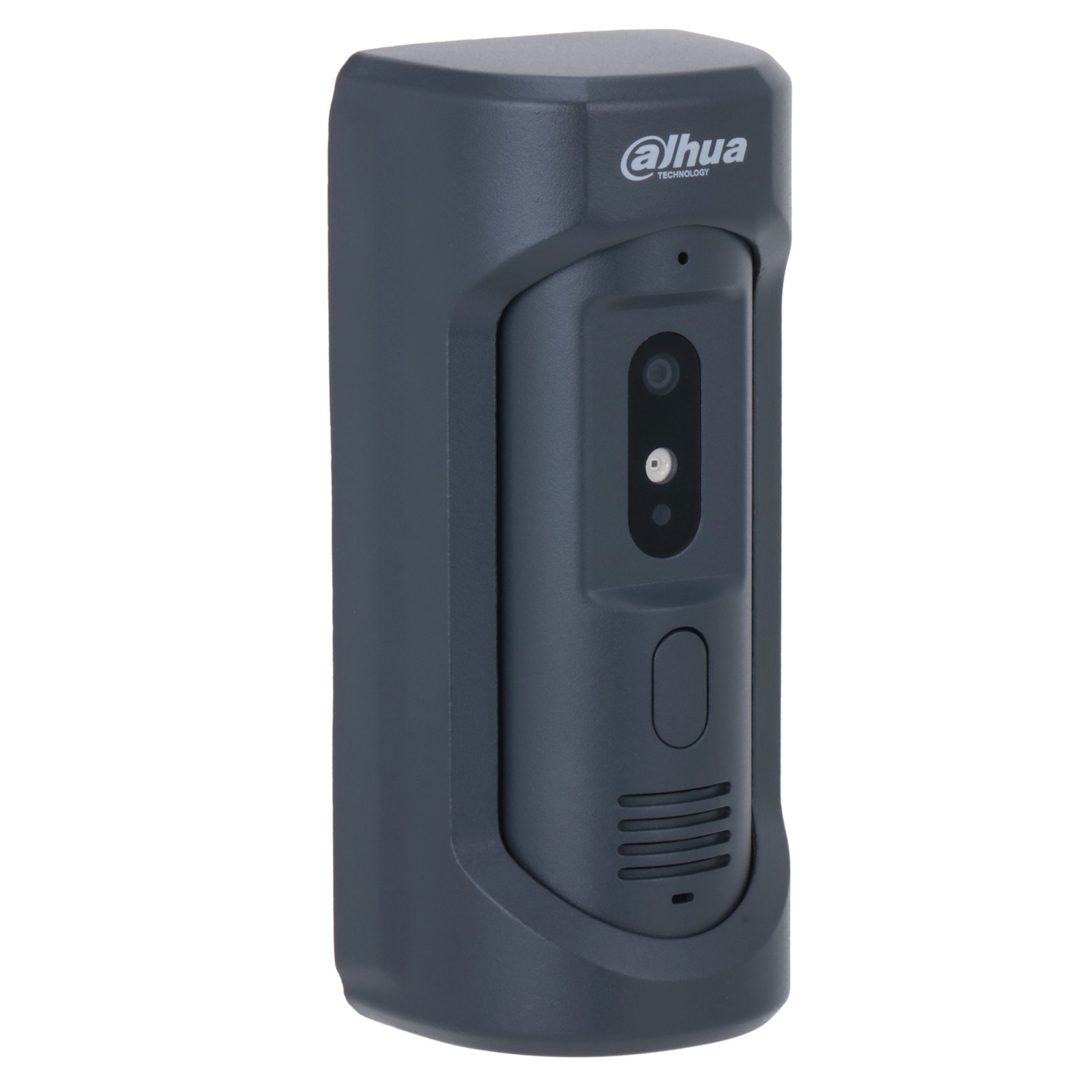

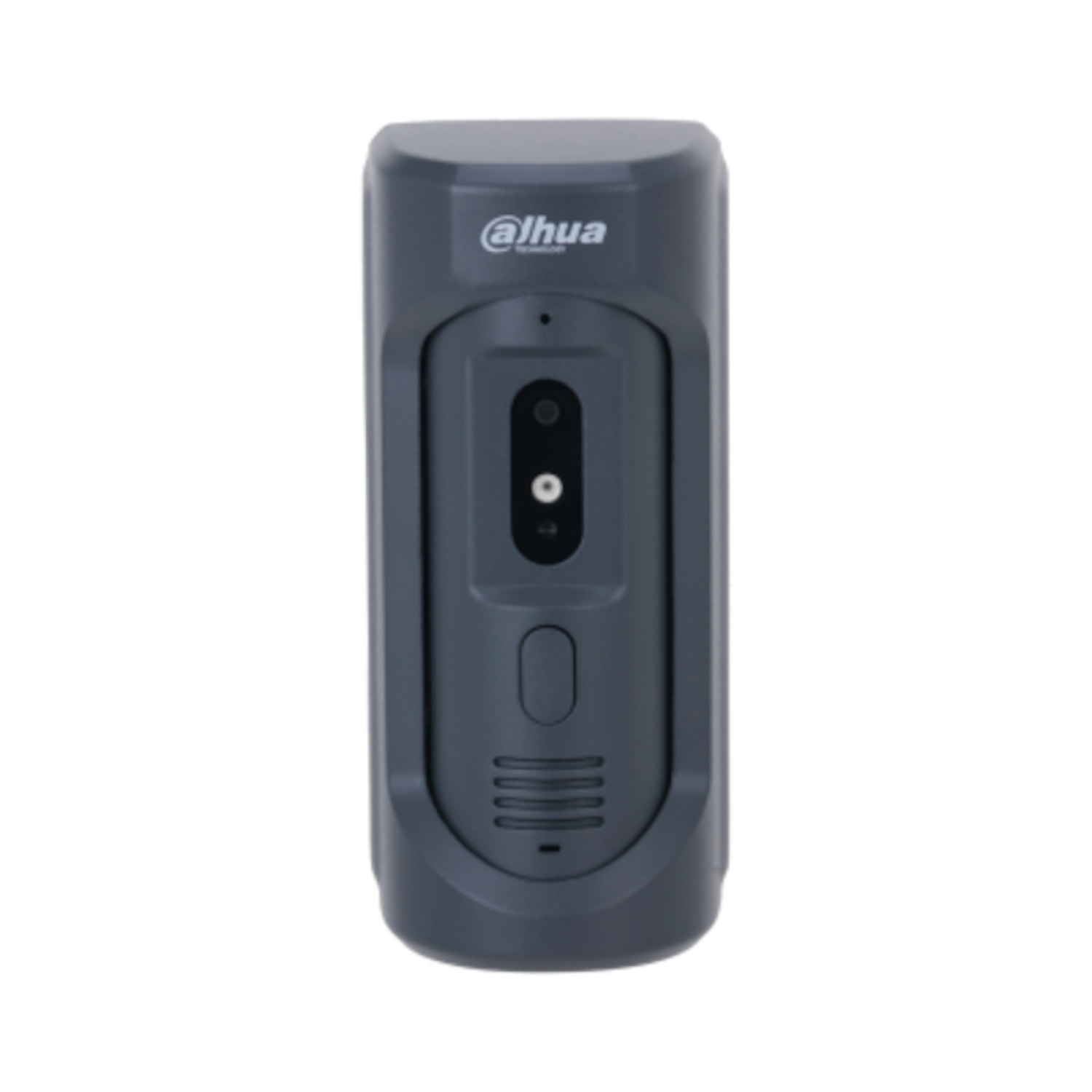

Dahua VTO2101E-P-S2 IP door intercom outdoor Villa door panel 2 MP HD CMOS camera ICR night vision two-way audio TCP/IP SIP IP65 waterproof IK10 vandal resistance remote unlock Grey/Metal

Dahua VTO2101E-P-S2 is a durable and technologically advanced outdoor IP Villa door intercom with a 2 MP HD camera, two-way audio, and remote unlocking, designed for extensive outdoor access control and visitor identification. The device provides stable TCP/IP and SIP connectivity, a high level of protection against weather conditions and vandalism, and automatic night vision without additional light sources.

Key Advantages

• HD CMOS camera → clear visual image for visitor identification

• Two-way audio → direct communication with visitors locally or via monitor/mobile device

• ICR night vision → automatic switching to infrared mode in low-light conditions

• TCP/IP and SIP support → easy integration with IP and VoIP systems

• Remote unlocking → doors can be opened remotely via monitor or mobile app

• IP65 protection → resistance to rain, dust, and external conditions

• IK10 anti-vandal rating → increased resistance to mechanical impacts

• Zinc alloy housing → robust material with long service life

• WDR 120 dB → improved image quality in backlight conditions

• ONVIF and CGI protocol support → compatibility with a broader security system ecosystem

Technical Specifications

• Type → IP Villa door intercom

• Model → VTO2101E-P-S2

• Camera sensor → 1/2.8″ 2 MP HD CMOS

• Lens → 2.8 mm, field of view H:80°, V:40°, D:90°

• Video compression → H.264; H.265

• WDR → 120 dB

• Audio → two-way, built-in speaker and microphone

• Network protocols → TCP/IP, SIP, ONVIF, CGI, RTSP, DNS, UPnP, etc.

• Connection → 1× RJ-45 10/100 Mbps

• Protection rating → IP65, IK10

• Power supply → PoE (802.3af) or 12 VDC, 1 A

• Weight → ~0.3 kg

• Dimensions (W×H×D) → 163 × 73 × 55 mm

• Operating temperature → –40 °C to +60 °C

• Supported protocols → ONVIF, CGI

Compatibility

• Compatible with → Dahua IP/VTH indoor monitors and SIP devices

• Supports → DMSS mobile app for remote viewing and unlocking

• Not compatible with → traditional analog doorbells without IP/SIP support

How to Use

• Install the intercom above the entrance on a wall, ensuring proper camera view

• Connect to the network via RJ-45 PoE or separate 12 V power supply

• Connect to an indoor monitor or SIP server

• Configure network settings via the device web interface or mobile app

• Check video and audio functionality

• Configure remote unlocking if required

• Perform regular maintenance — clean the camera and microphone from dust

Why Choose This Product
Dahua VTO2101E-P-S2 combines high-resolution video, robust construction, and extensive connectivity to deliver a stable outdoor access control and security solution. Its resistance to weather and mechanical damage makes it suitable for private homes and small businesses, offering efficient communication and remote management.

Real-Life Use Scenarios

• Monitoring private house entrance doors and identifying visitors

• Access control for a villa or country house

• Improving entrance security at commercial facilities

• Office entrance video communication with staff or visitors

• Integration with existing IP security systems

Package Contents

• Dahua VTO2101E-P-S2 door intercom

• Rain cover

• Mounting brackets and screws

• Protective cable connector

About the Brand
Dahua Technology is a global security technology brand that develops innovative, reliable, and professional video security solutions, focusing on quality, durability, and broad ecosystem integration for both residential and business needs.
