Ruijie RG-EST350 V2 | 5GHz Dual-Stream Wi-Fi 5 (802.11ac) Wireless Bridge — 15 dBi Antenna, IP54 Rated, 5KM Transmission Range, White Design

Ruijie RG-EST350 V2 Wireless Bridge – 5GHz 5KM Point-to-Point Link, 15 dBi Antennas, IP54 (White)

Industrial-Grade Long-Range 802.11ac Bridge for Remote Connectivity and IP Surveillance Networks

The Ruijie RG-EST350 V2 is a high-gain wireless bridge system designed for long-distance point-to-point deployments up to 5 kilometers. Operating on the 5GHz Wi-Fi 5 band (802.11ac) and equipped with dual-stream MIMO and 15 dBi directional antennas, this device ensures robust outdoor performance with fast, stable throughput — ideal for remote camera backhaul, warehouse-to-office links, farm networks, and smart city connectivity.

Designed with an IP54-rated enclosure, passive PoE support, and plug-and-play pre-pairing, it’s a turnkey solution for linking two LAN segments wirelessly with minimal effort and maximum reliability.

Key Features & Benefits

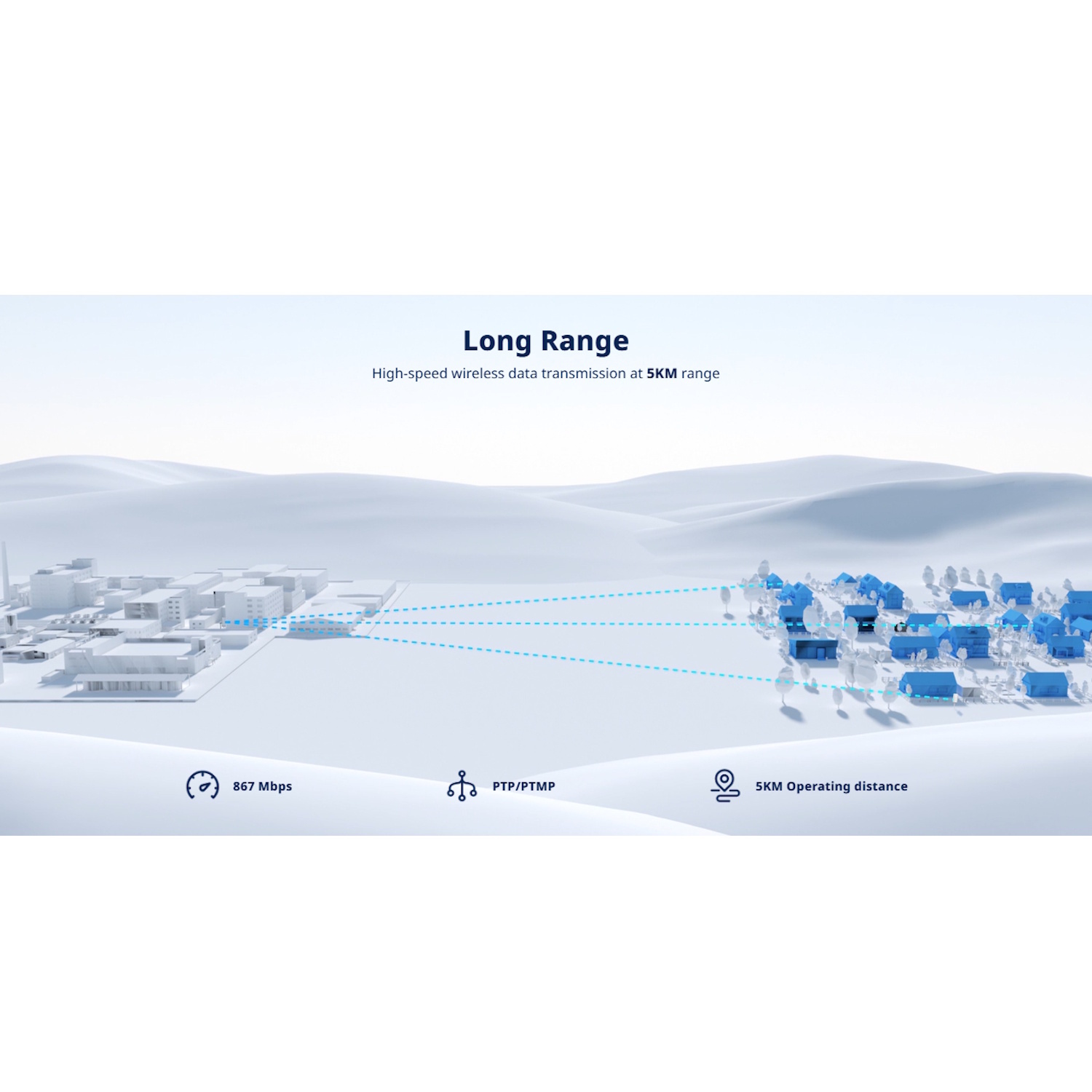

• Up to 5KM Point-to-Point Wireless Link
  Delivers stable wireless Ethernet bridging up to 5000 meters (LOS) — perfect for camera poles, distant buildings, and cross-property LAN extension.

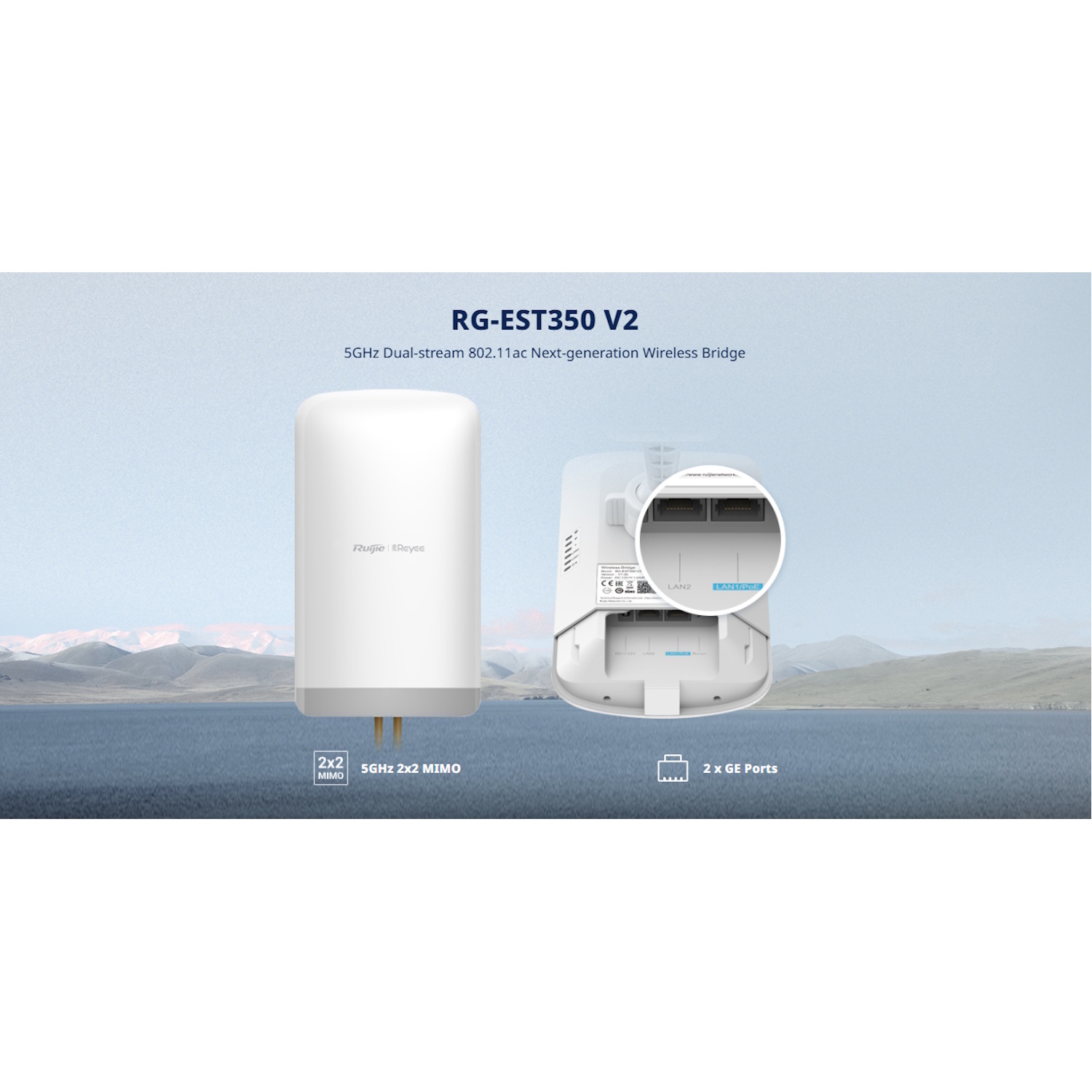

• 802.11ac 5GHz Dual-Stream Technology
  Offers up to 867 Mbps with 2×2 MIMO, optimized for interference-resistant performance and low latency even in high-demand video or sensor networks.
• 15 dBi High-Gain Directional Antennas
  Integrated directional panels focus signal precisely across long distances, increasing link strength and stability over vast outdoor spans.

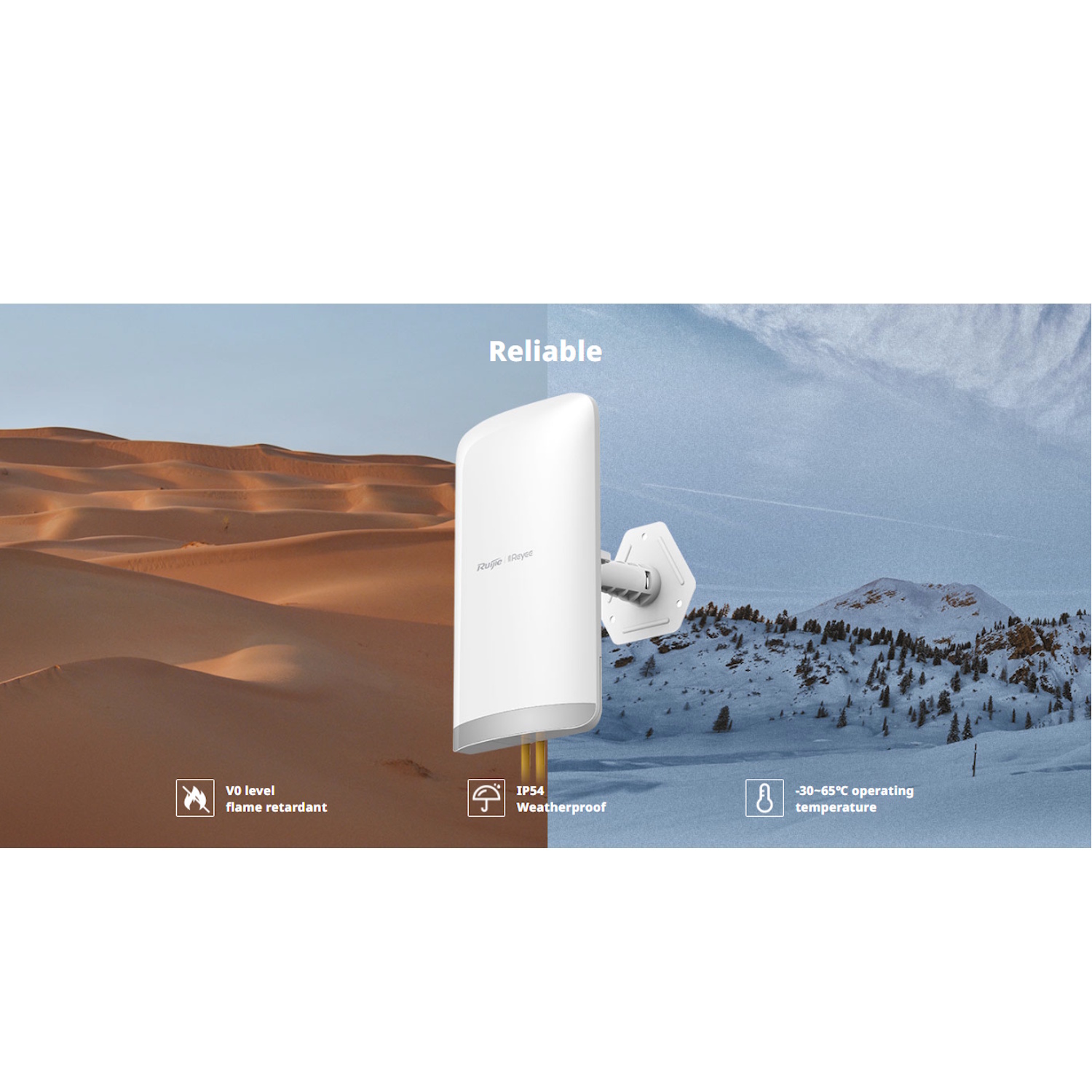

• Weather-Resistant (IP54) Design
  Built for rugged conditions — dustproof and resistant to rain and environmental changes, suitable for 24/7 outdoor deployment.

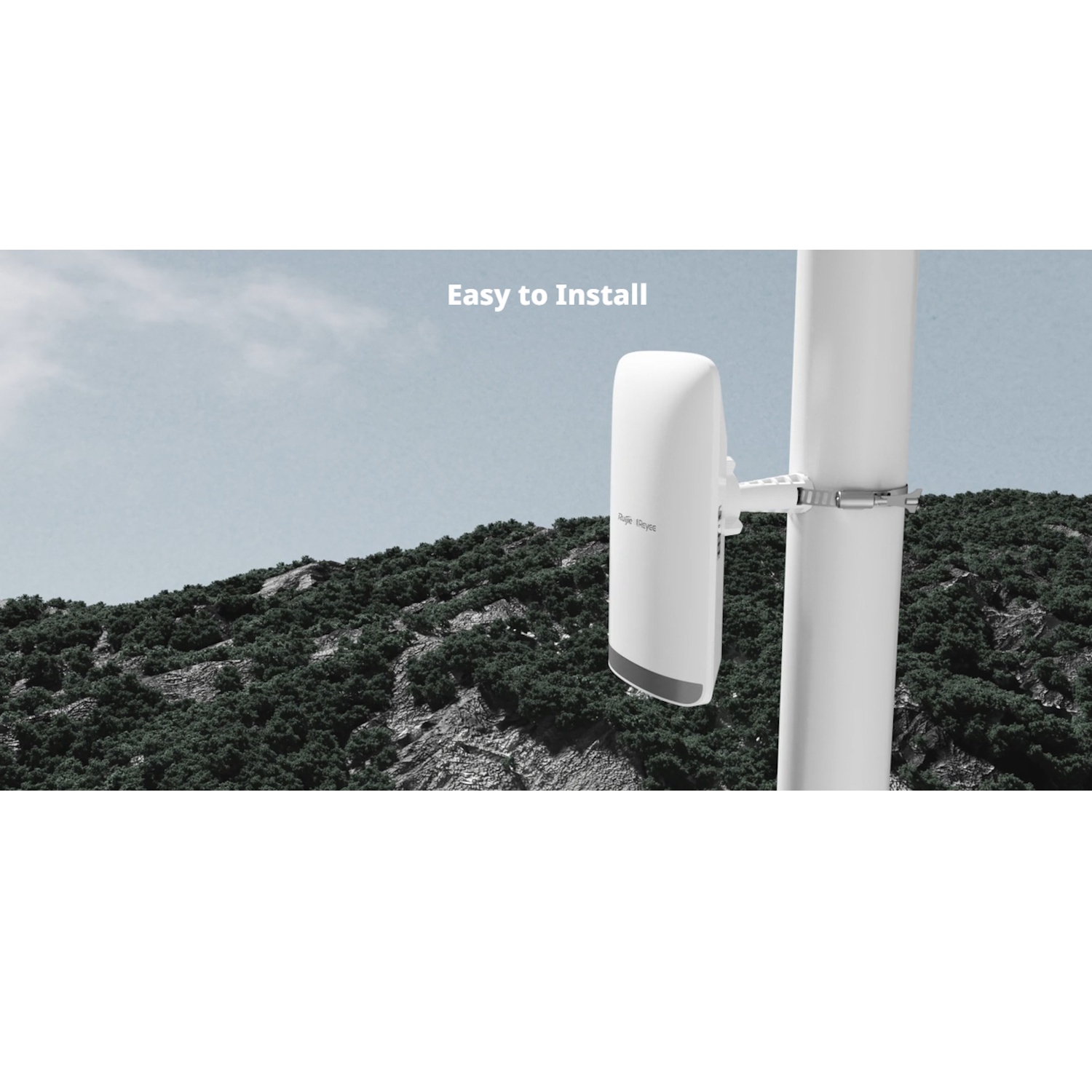

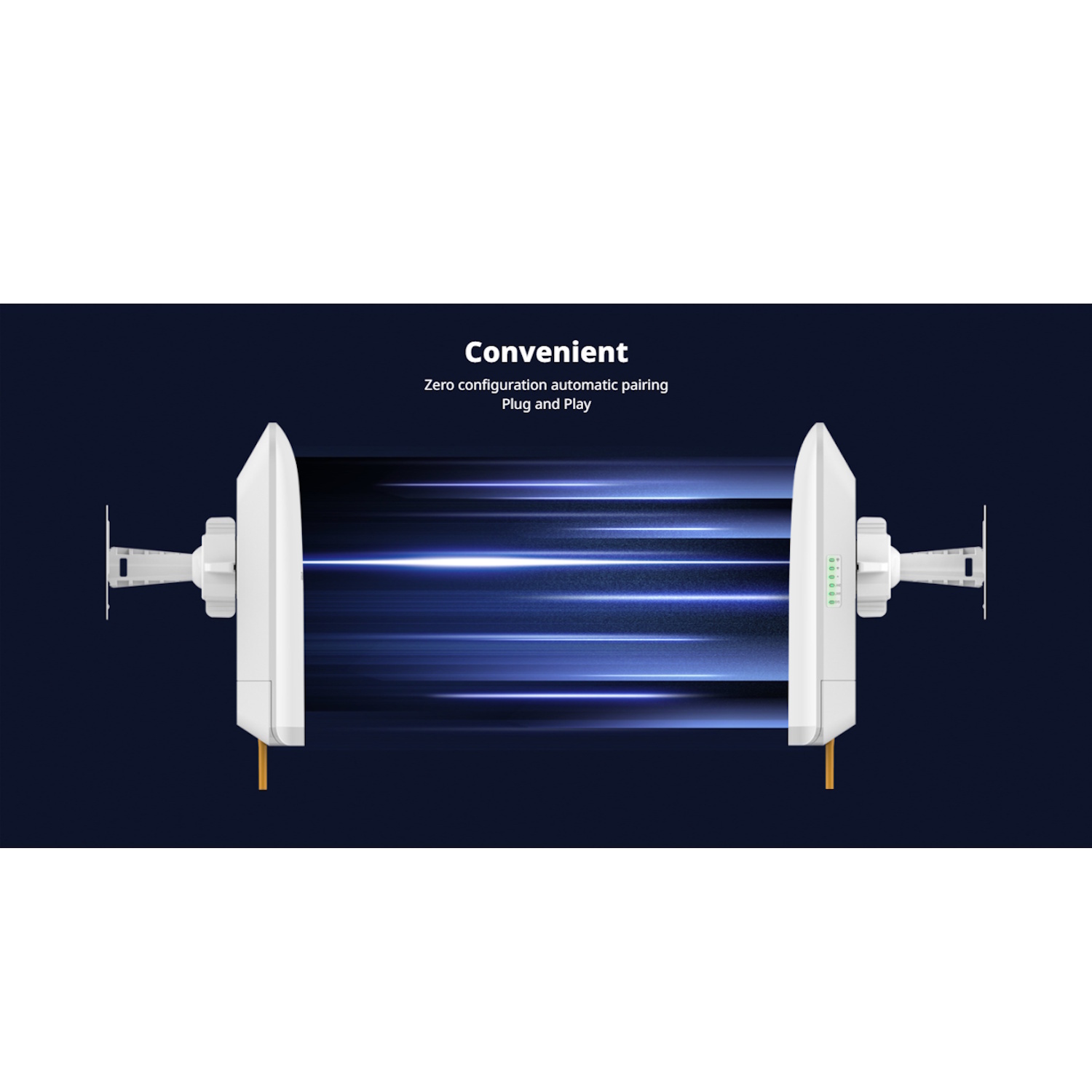

• Factory-Paired for Plug & Play
  Master/Slave units are pre-linked from the factory — mount, power up, and connect. No manual pairing or configuration needed.
• Passive PoE for Simplified Power Delivery
  Delivers data and power over a single cable, reducing wiring costs and enabling clean installations even on poles or rooftops.

Technical Specifications

• Model: RG-EST350 V2
• Product Type: Long-Range Wireless Bridge
• Wireless Standard: IEEE 802.11ac (Wi-Fi 5)
• Frequency Band: 5.8 GHz
• MIMO Configuration: 2×2 MIMO
• Max Wireless Speed: Up to 867 Mbps
• Transmission Distance: Up to 5 KM (line-of-sight)
• Antenna Gain: 15 dBi integrated directional
• LAN Ports: 1 × 10/100 Mbps RJ45 (per unit)
• PoE Support: Passive PoE 24V
• Power Consumption: ≤ 6W
• Surge Protection: 4kV
• Management: Web GUI, optional Ruijie Cloud
• Enclosure Protection: IP54
• Operating Temperature: -30°C to +55°C
• Humidity Range: 5% to 95% RH (non-condensing)
• Unit Dimensions: 20.4 × 9.6 × 5.6 cm
• Net Weight (per unit): 400 g
• Color: White
• EAN: 6971693272286

What’s Included

1. 2 × RG-EST350 V2 Wireless Bridge Units (Master + Slave)
2. 2 × Passive PoE Injectors

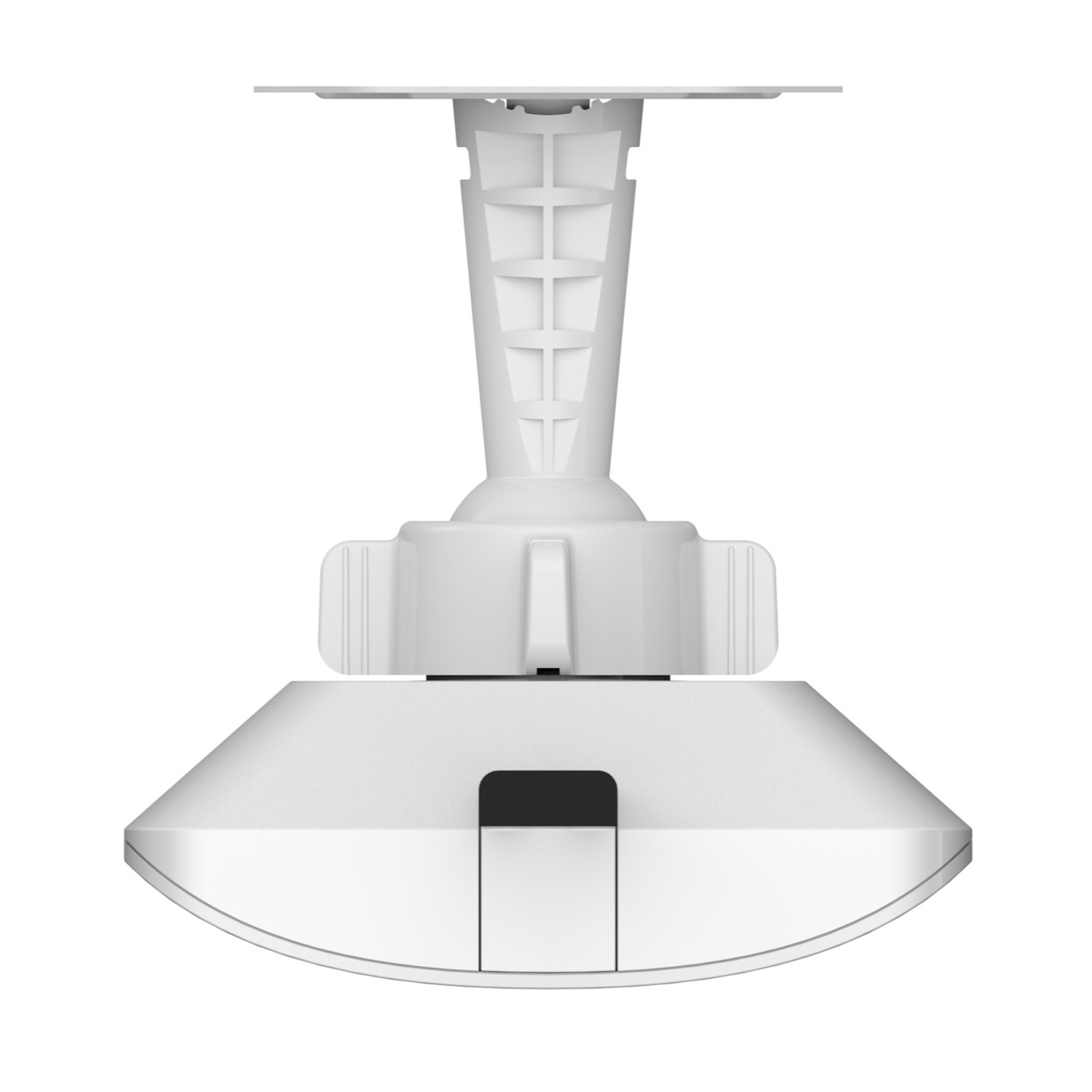

3. 2 × Mounting Kits (Wall & Pole Brackets)
4. Quick Installation Guide

Why Choose Ruijie RG-EST350 V2?

The RG-EST350 V2 is the ideal solution for creating stable wireless bridges between buildings or infrastructure nodes. Whether you need to connect surveillance cameras on distant light poles, extend a network to a remote site, or avoid trenching fiber, this bridge provides secure, long-distance, and interference-resilient connectivity in minutes — no complicated setup, just power and go.
