Pneimatiskais inžektoru izvilcējs, 21 detaļu komplekts, YT-05335, YATO

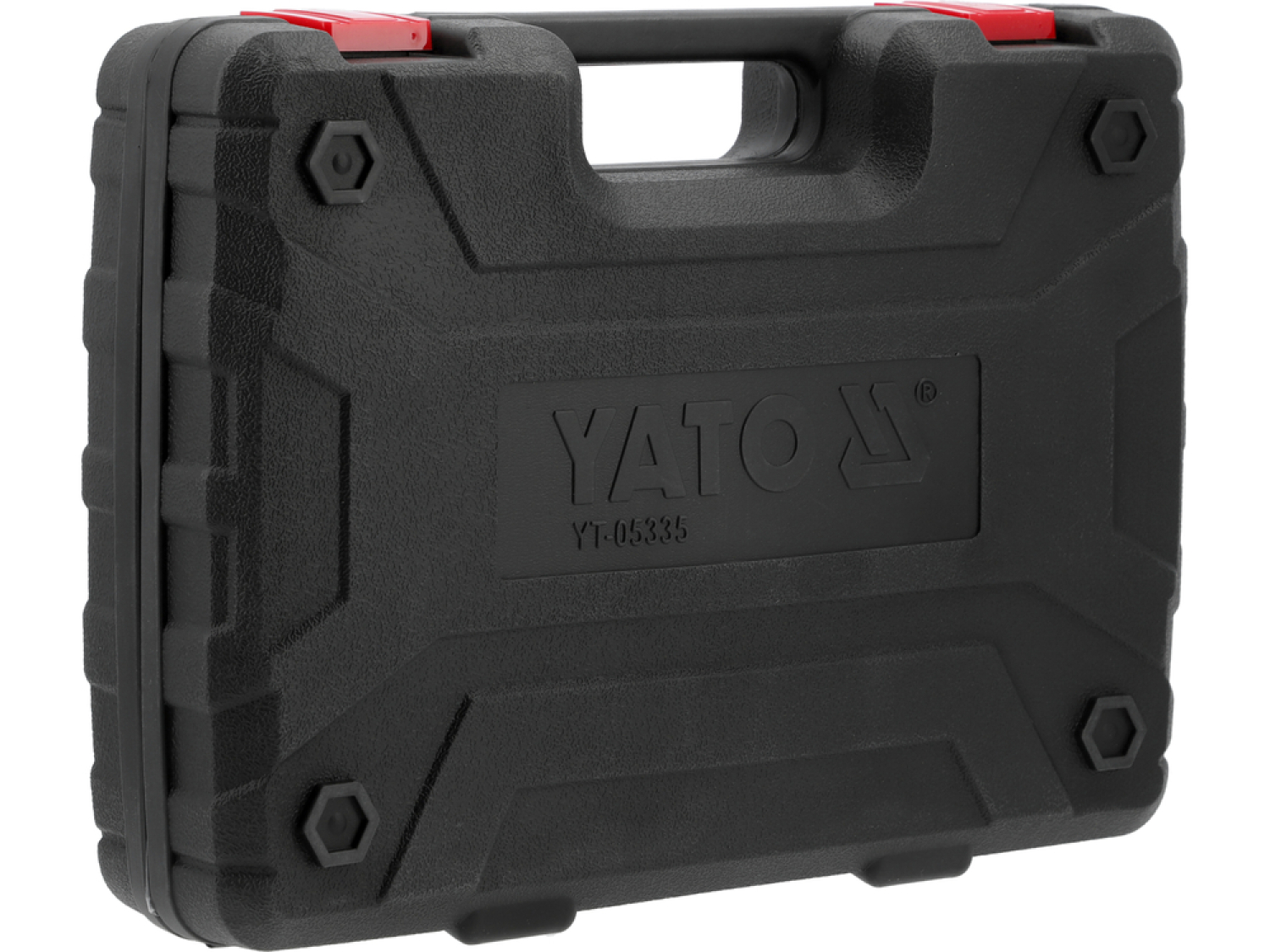

The YATO Pneumatic Puller for Injector YT-05335 is specially designed to remove Bosch, Delphi, Denso, and Siemens injectors from petrol and diesel engines. This kit consists of 21 components neatly organized in a durable BMC plastic case.

• Recommended operating pressure: 0.5 MPa
• Max. operating pressure: 0.8 MPa
• Max. torque: 30 Nm
• Quick coupler size: standard
• Air connection diameter: standard
• Diameter of air supply hose: 3/8" (9.5 mm)
• Weight: 3.8 kg

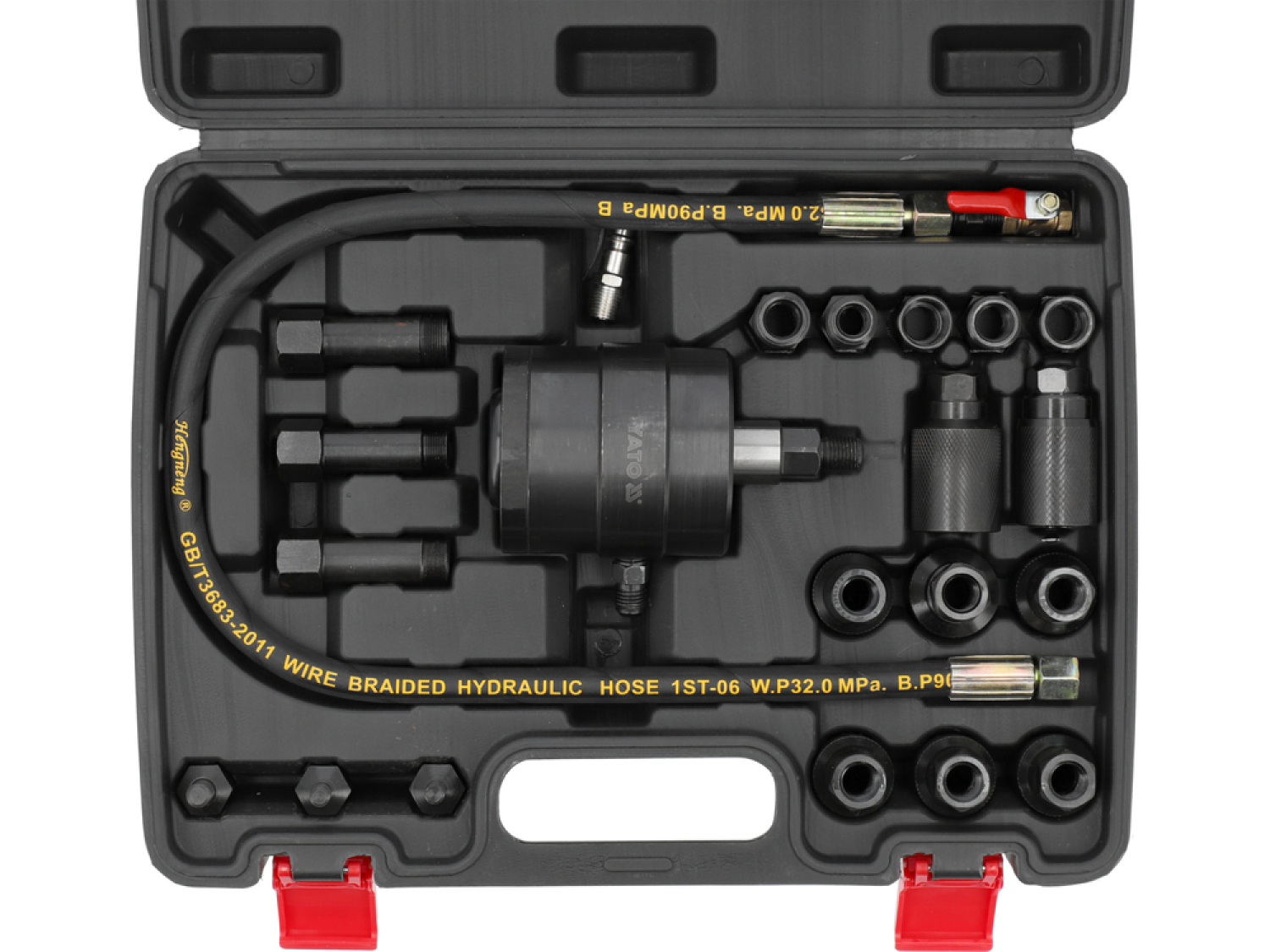

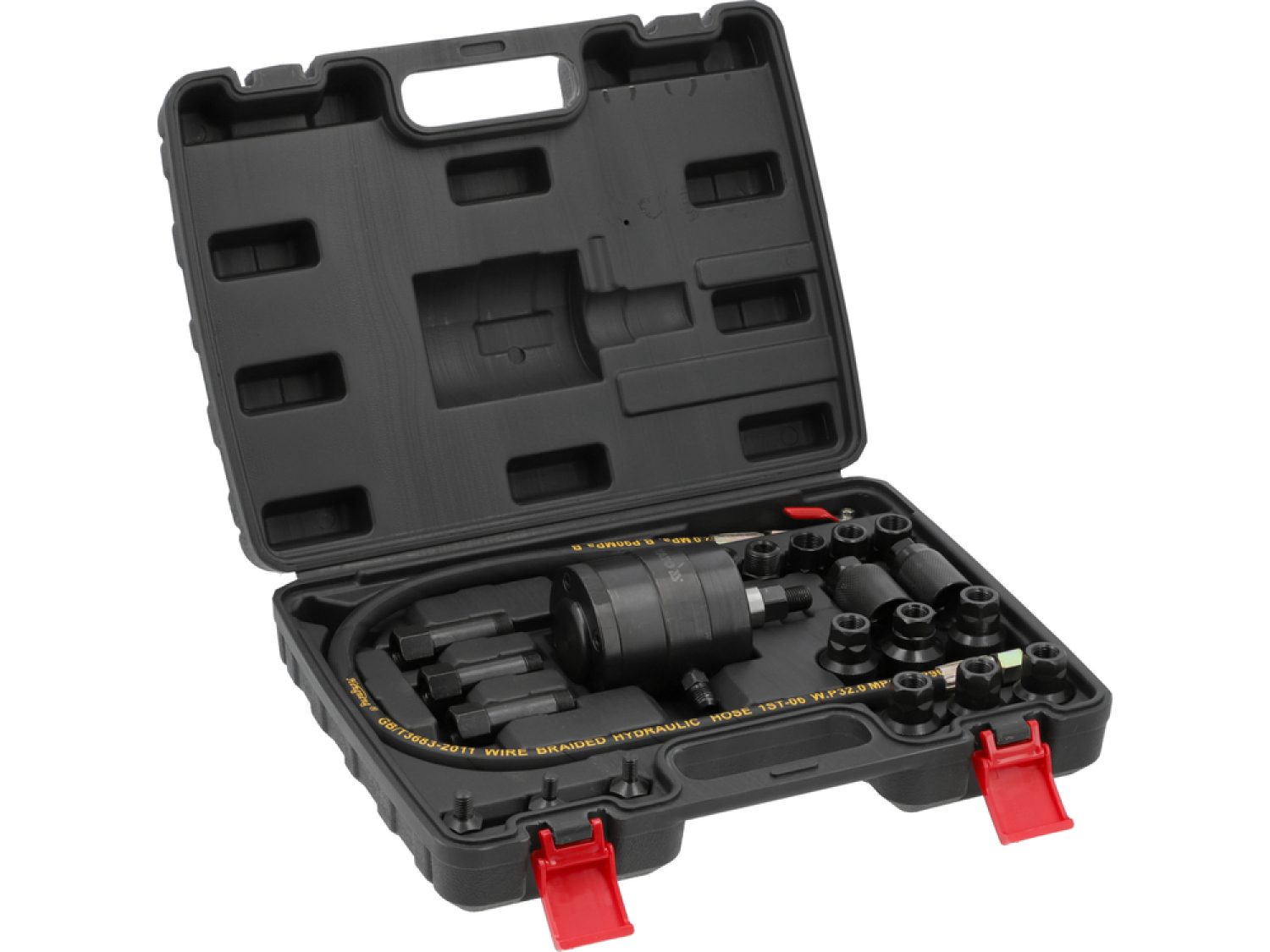

• Contents:
• Pneumatic cylinder with main thread M14 x 1.5
• Flexible pneumatic hose length 730 mm with ball valve and male connection (standard)
• 19 hose couplings in sizes: M20 x 1.0, M18 x 0.75, M17 x 1.0, M8 x 1.25, M8 x 1.0, M10 x 1.5, M22 x 1.5, M20 x 1.5, M16 x 1.5, M18 x 1.5, M12 x 1.5, M31 x 0.75, M26 x 0.75, M25 x 0.5, M29 x 1.0, M27 x 0.75, M27 x 1.0, M27 x 1.0, M25 x 1.0

Specifications

• Series: GRF
• Max. working pressure: 0.8 MPa
• Recommended working pressure: 0.5 MPa
• Max. torque: 30 Nm
• Quick coupler size: standard
• Air connection diameter (PT): standard
• Air supply hose inside diameter: 3/8" (9.5 mm)
• Acoustic pressure: 102.0 ± 3.0 dB(A)
• Acoustic power: 113.0 ± 3.0 dB(A)
• Vibrations: 23.8 ± 1.5 m/s²
• Weight: 3.8 kg
• Pieces: 21
• Application: for dismantling Bosch, Delphi, Denso, and Siemens injectors
